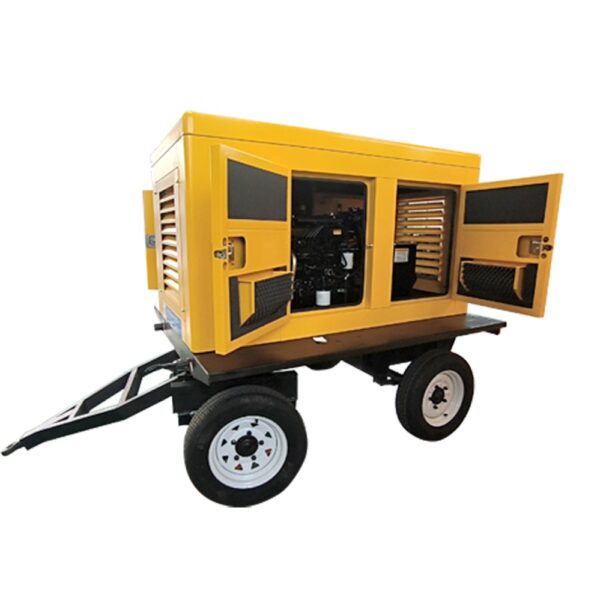

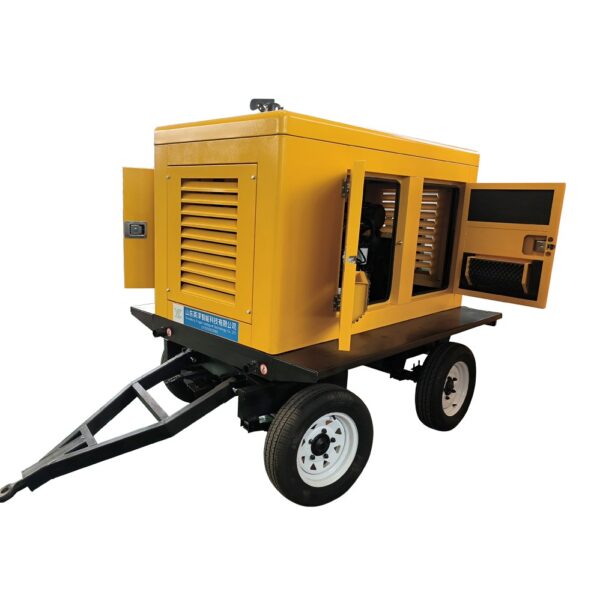

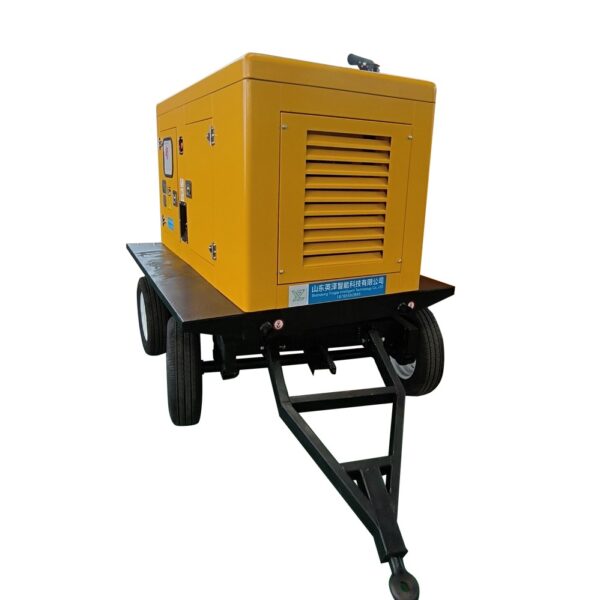

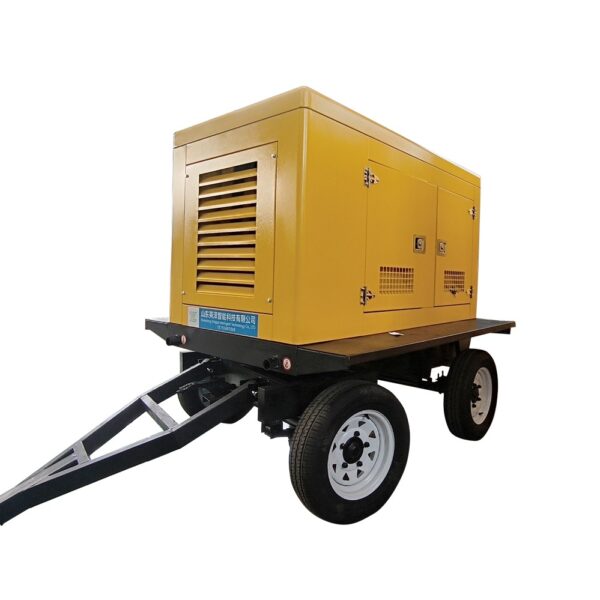

UT700Y10 80kW 100kVA Towable Diesel Generator
SKU:
FG-231758
R165,999.00
The UT700Y10 80kW 100kVA Towable Diesel Generator is a heavy-duty mobile power solution designed for construction sites, mining operations, welding applications, industrial projects and temporary power requirements. Powered by a WEICHAI WP4.1D100E200 4-cylinder diesel engine, the generator delivers 80 kW prime power and up to 88 kW standby engine power for dependable operation in demanding environments.
The UT700Y10 features a 400 V three-phase electrical system, brushless self-excited alternator, Class H insulation and IP23 alternator protection. Its towable configuration allows convenient relocation between worksites, while automatic, low-noise and remote-control configurations are available to suit different industrial applications.
Share this product
Key Features
- 80 kW / 100 kVA prime generator output
- Heavy-duty WEICHAI diesel engine
- WEICHAI WP4.1D100E200 engine model
- 88 kW standby engine power
- 400 V three-phase output
- 50 Hz / 60 Hz configurations
- 0.8 power factor
- 4-cylinder inline diesel engine
- 4-stroke engine configuration
- Naturally aspirated
- Forced water-cooling system
- 1,500 / 1,800 rpm configurations
- LY274C industrial alternator
- Brushless, self-excited alternator
- Class H alternator insulation
- IP23 alternator protection
- Approx. 8–10 hours fuel capacity
- Towable mobile configuration
- Automatic configuration available
- Low-noise configuration available
- Remote operation and control available
- Suitable for welding and industrial power applications
- Designed for temporary and mobile power requirements
| Specification | Details |
|---|---|
| TECHNICAL DATA | — |
| Model | UT700Y10 |
| Product Type | Towable Diesel Generator |
| Generator Class | Industrial Mobile Generator Set |
| Prime Power | 80 kW / 100 kVA |
| Rated Voltage | 400 V |
| Phase | 3-Phase |
| Frequency | 50 Hz / 60 Hz |
| Power Factor | 0.8 |
| Rated Current | Approx. 144 A at 400 V, 3-Phase |
| Rated Speed | 1,500 rpm / 1,800 rpm |
| Fuel Type | Diesel |
| Fuel Capacity | Sized for approx. 8–10 hours operation |
| Configuration | Towable / Mobile |
| Alternative Voltage | Available on Request |
| Optional Configurations | Automatic / Low-Noise / Mobile / Remote-Control |
| Primary Applications | Construction, Mining, Welding & Industrial Power |
| ENGINE | — |
| Engine Manufacturer | WEICHAI |
| Engine Model | WP4.1D100E200 |
| Engine Type | Industrial Diesel |
| Prime Engine Power | 80 kW |
| Standby Engine Power | 88 kW |
| Number of Cylinders | 4 |
| Cylinder Arrangement | Vertical Inline |
| Engine Cycle | 4-Stroke |
| Aspiration | Naturally Aspirated |
| Bore × Stroke | 105 × 118 mm |
| Cooling System | Forced Water-Cooling Cycle |
| Engine Speed – 50 Hz | 1,500 rpm |
| Engine Speed – 60 Hz | 1,800 rpm |
| Fuel | Diesel |
| ALTERNATOR | — |
| Alternator Model | LY274C |
| Alternator Type | Brushless / Self-Excited |
| Rated Power | 80 kW |
| Insulation Class | H |
| Protection Rating | IP23 |
| Phase Configuration | 3-Phase |
| Rated Voltage | 400 V |
| Frequency | 50 / 60 Hz |
| Power Factor | 0.8 |
| Excitation | Brushless Self-Excitation |
| CHASSIS | — |
| Chassis Type | Heavy-Duty Mobile Generator Chassis |
| Configuration | Towable |
| Mobility | Trailer Mounted |
| Application | Temporary / Mobile Power |
| Worksite Deployment | Construction & Industrial |
| Generator Mounting | Integrated |
| CANOPY | — |
| Canopy Options | Standard / Low-Noise |
| Equipment Housing | Industrial Generator Enclosure |
| Engine Access | Serviceable Configuration |
| Alternator Protection | Enclosed Installation |
| Outdoor Application | Suitable |
| Low-Noise Version | Optional |
| CONTROL PANEL | — |
| Control System | Integrated Generator Control Panel |
| Generator Monitoring | Supported |
| Engine Monitoring | Supported |
| Automatic Configuration | Optional |
| Remote Operation | Optional |
| Remote Control | Optional |
| Electrical Output Monitoring | Integrated |
| Frequency Monitoring | Integrated |
| Voltage Monitoring | Integrated |
| POWER OUTPUT | — |
| Prime Generator Output | 80 kW |
| Prime Apparent Power | 100 kVA |
| Nominal Current | Approx. 144 A |
| Nominal Voltage | 400 V |
| Output Configuration | 3-Phase |
| Frequency Options | 50 / 60 Hz |
| Power Factor | 0.8 |
| Alternative Output Configurations | Available on Request |
| APPLICATIONS | — |
| Construction Sites | Suitable |
| Mining Operations | Suitable |
| Welding Applications | Suitable |
| Industrial Facilities | Suitable |
| Civil Engineering Projects | Suitable |
| Temporary Site Power | Suitable |
| Equipment Power Supply | Suitable |
| Infrastructure Projects | Suitable |
| Emergency Power | Suitable |
| Remote Worksites | Suitable |
