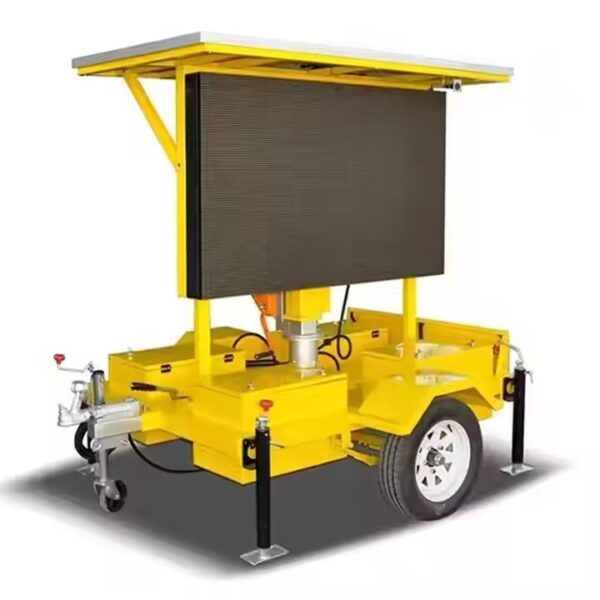

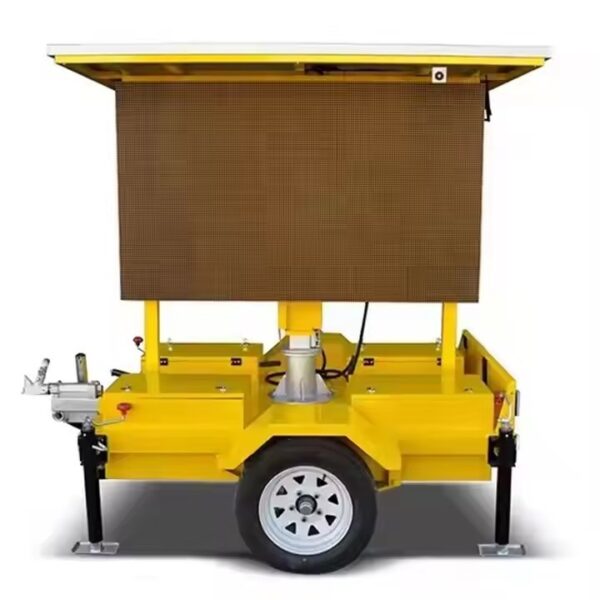

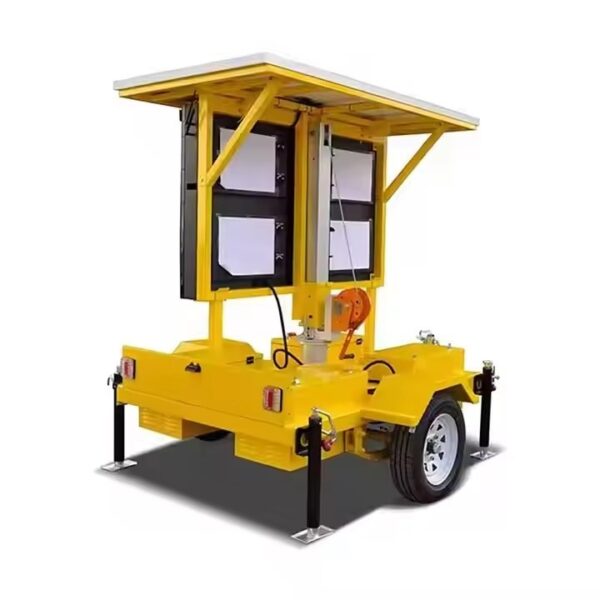

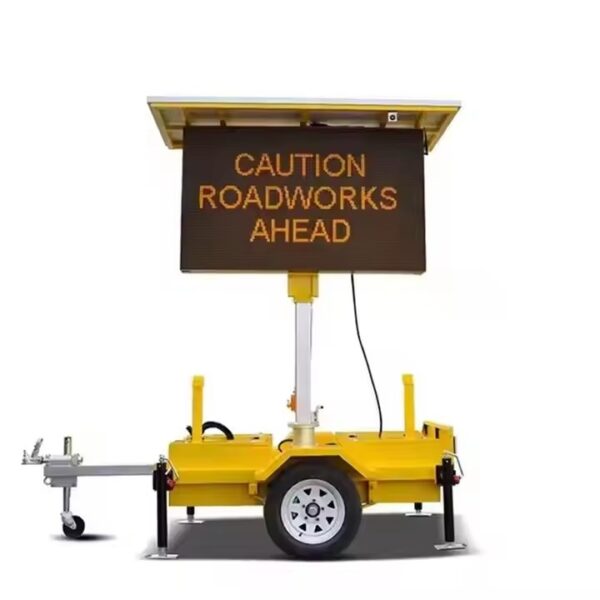

HW150 Solar Full-Colour Variable Message Sign (VMS)
The HW150 Solar Full-Colour Variable Message Sign is a mobile trailer-mounted LED display designed for roadworks, traffic management, construction zones, wayfinding, airports and public information applications. Its 1,600 × 960 mm sunlight-readable full-colour LED screen provides up to 5,000 cd/m² brightness for clear outdoor visibility.
The HW150 features a hydraulic lifting system with 800 mm travel, up to 330° manual screen rotation, solar and battery-powered operation, and remote content management. 4G and USB playback provide flexible message programming, while IP65 or higher weather protection and a -40°C to +70°C operating range make the unit suitable for demanding outdoor environments.
Share this product
Key Features
- Full-colour mobile LED Variable Message Sign
- 1,600 × 960 mm LED display
- P10 / P16 pixel configurations
- Up to 5,000 cd/m² brightness
- Sunlight-readable outdoor display
- Solar and battery-powered operation
- 100–240 V AC charging/power compatibility
- 4G remote connectivity
- USB media playback
- Remote content management
- Remote device management
- Integrated Content Management System (CMS)
- Hydraulic display lifting system
- 800 mm hydraulic lifting travel
- Up to 330° manual display rotation
- IP65 or higher weather protection
- Wide -40°C to +70°C operating range
- Trailer-mounted mobile configuration
- Integrated handbrake
- Approx. 629 kg total mass
- Suitable for road and public information applications
- 3-year warranty
| Specification | Details |
|---|---|
| TECHNICAL DATA | — |
| Brand | BULESTAR |
| Model | HW150 |
| Product Type | Solar Full-Colour Variable Message Sign |
| Configuration | Mobile / Trailer Mounted |
| Display Technology | LED |
| Display Colour | Full Colour |
| Screen Size | 1,600 × 960 mm |
| Display Area | Approx. 1.54 m² |
| Pixel Configuration | P10 / P16 |
| Brightness | Up to 5,000 cd/m² |
| Sunlight Readable | Yes |
| Weather Protection | IP65 or Higher |
| Operating Temperature | -40°C to +70°C |
| Usage Environment | Indoor / Outdoor |
| Total Mass | Approx. 629 kg |
| Vehicle Dimensions | 2,382 × 1,800 × 2,074 mm |
| Warranty | 3 Years |
| DISPLAY SYSTEM | — |
| Display Type | Full-Colour LED Display |
| Active Screen Dimensions | 1,600 × 960 mm |
| Pixel Pitch Options | P10 / P16 |
| Maximum Brightness | 5,000 cd/m² |
| Outdoor Daylight Visibility | Sunlight Readable |
| Content Type | Text / Images / Graphics / Multimedia |
| Photo Content | Supported |
| Electronic Information Display | Supported |
| Wayfinding Content | Supported |
| Public Information Display | Supported |
| Advertising Content | Supported |
| Weather Resistance | IP65 or Higher |
| REMOTE MANAGEMENT SYSTEM | — |
| Remote Device Management | Supported |
| Remote Content Management | Supported |
| Content Management System | Yes |
| Wireless Connectivity | 4G |
| Remote Message Updates | Supported |
| Remote Media Updates | Supported |
| Device Management | Remote |
| Local Media Playback | USB |
| Multimedia Playback | 4G / USB |
| POWER SYSTEM | — |
| Primary Power Modes | Solar / Battery |
| Solar Power | Supported |
| Battery Operation | Supported |
| AC Supply | 100–240 V AC |
| Solar Panel Quantity | 1 |
| Solar Panel Dimensions | Approx. 2,000 × 1,000 mm |
| Power Supply Configuration | Battery / Solar Panel |
| External AC Compatibility | Yes |
| Off-Grid Operation | Supported |
| MAST / LIFTING SYSTEM | — |
| Lifting System | Hydraulic |
| Hydraulic Lift Travel | 800 mm |
| Display Rotation | Manual |
| Maximum Rotation | Approx. 330° |
| Display Positioning | Adjustable |
| Operating Position | Raised |
| Travel Position | Lowered |
| Screen Mounting | Trailer Integrated |
| CHASSIS | — |
| Chassis Type | Mobile Display Trailer |
| Vehicle Length | 2,382 mm |
| Vehicle Width | 1,800 mm |
| Vehicle Height | 2,074 mm |
| Total Mass | Approx. 629 kg |
| Braking Method | Handbrake |
| Mobility | Towable |
| Deployment | Mobile / Temporary |
| Mounting | Custom Trailer Mount |
| Outdoor Suitability | Yes |
| CANOPY / EQUIPMENT HOUSING | — |
| Electronics Housing | Integrated |
| Outdoor Protection | IP65 or Higher |
| Power Equipment Installation | Trailer Integrated |
| Control Equipment | Enclosed |
| Solar System Integration | Trailer Mounted |
| Display Support Structure | Heavy-Duty Outdoor Configuration |
| CONTROL PANEL | — |
| Content Management System | Integrated |
| Remote Management | Yes |
| 4G Connectivity | Supported |
| USB Playback | Supported |
| Remote Content Updates | Supported |
| Remote Device Monitoring | Supported |
| Multimedia Support | Yes |
| Local Content Loading | USB |
| Network Content Loading | 4G |
| OPERATING DATA | — |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +70°C |
| Environmental Protection | IP65 or Higher |
| Daylight Operation | Suitable |
| Night-Time Operation | Suitable |
| Indoor Operation | Suitable |
| Outdoor Operation | Suitable |
| APPLICATIONS | — |
| Roadworks | Suitable |
| Traffic Management | Suitable |
| Construction Zones | Suitable |
| Wayfinding | Suitable |
| Airports | Suitable |
| Parking Areas | Suitable |
| Public Information | Suitable |
| Emergency Information | Suitable |
| Events & Exhibitions | Suitable |
| Advertising & Promotional Displays | Suitable |
The HW150 Solar Full-Colour Variable Message Sign is suitable for roadworks, temporary traffic management, construction zones, wayfinding, airports, parking facilities, infrastructure projects, emergency information, public notices and mobile advertising applications.
Its combination of a full-colour sunlight-readable display, solar and battery operation, hydraulic lifting, 330° rotation and 4G remote management provides a flexible solution where messages need to be changed remotely and the equipment regularly relocated.
