Skid-Mounted Solar LED Light Tower
The Skid-Mounted Solar LED Light Tower is a heavy-duty, off-grid lighting solution designed for construction sites, mining operations, industrial facilities, remote work areas and temporary site illumination. Its solar-powered configuration provides dependable area lighting without the continuous fuel consumption and operating noise associated with conventional diesel-powered light towers.

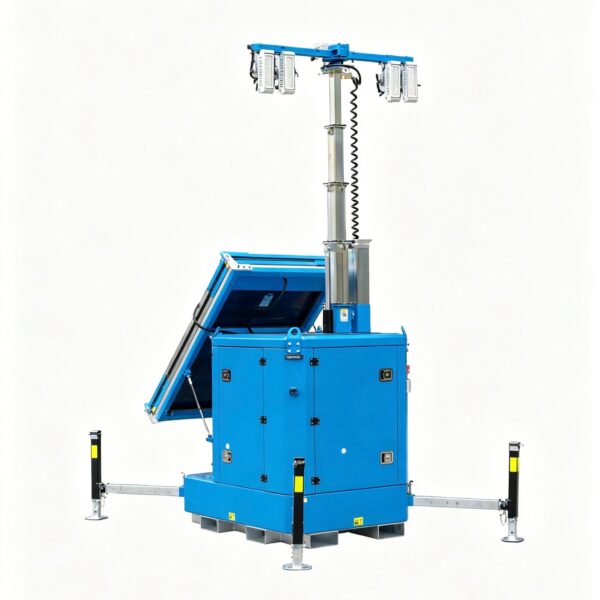

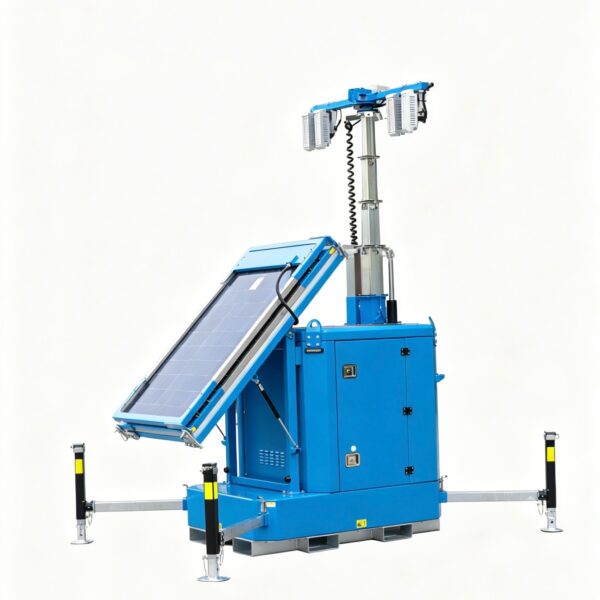

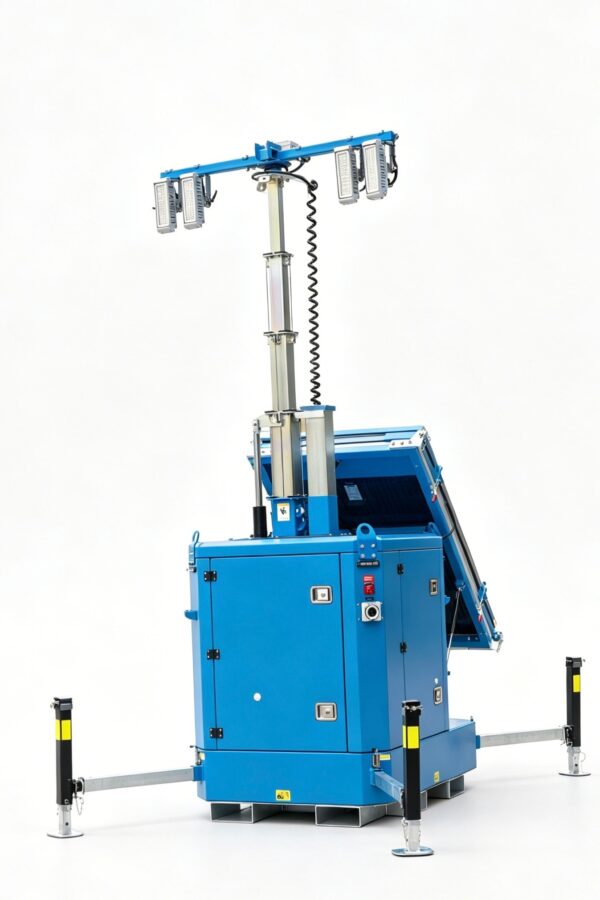

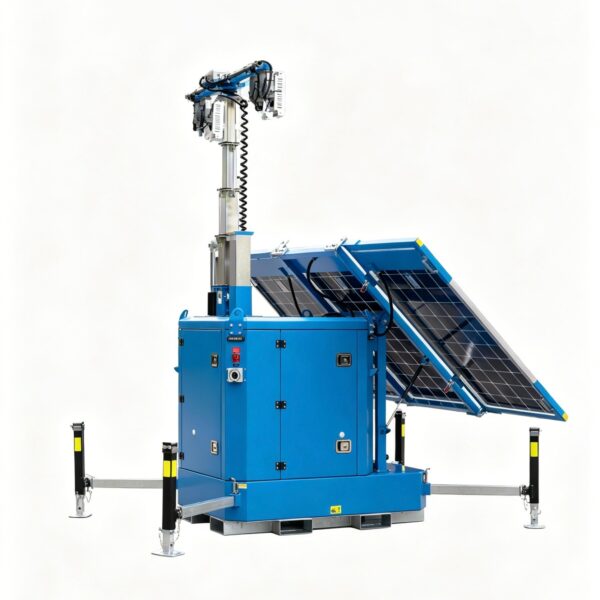

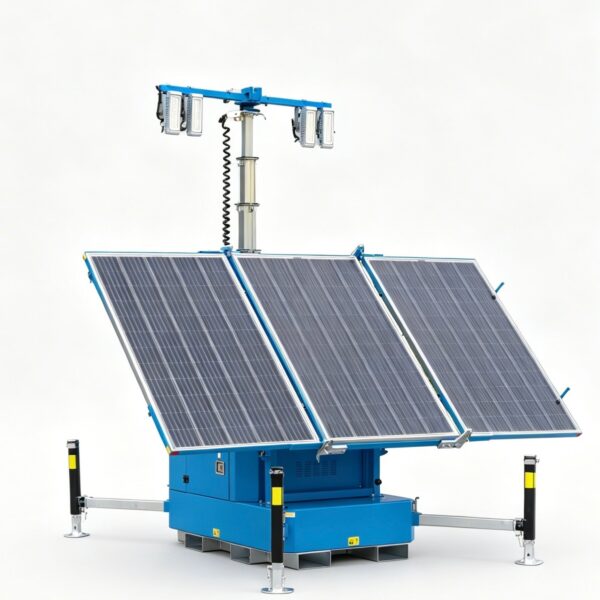

The unit features three large adjustable solar panels, a heavy-duty steel equipment enclosure and a telescopic mast fitted with four high-output LED floodlights. The floodlight assembly provides 360° area lighting, while the high-efficiency LED technology delivers up to 170 lm/W with a cool daylight colour temperature of approximately 6000 K.
Share this product
Key Features
- Solar-powered, off-grid lighting system
- Heavy-duty fixed skid-mounted design
- Three large adjustable solar panels
- Telescopic lighting mast
- Four high-output LED floodlights
- 360° area illumination
- High LED efficiency of up to 170 lm/W
- Up to 400,000 lm stated luminous flux
- 6000 K cool daylight illumination
- IP65-rated lighting equipment
- Dimming support
- Extendable stabiliser/outrigger system
- Four adjustable stabiliser feet for secure positioning
- Integrated forklift pockets for handling and relocation
- Heavy-duty steel equipment and battery enclosure
- Suitable for outdoor and remote-site operation
- Low-noise lighting solution with no diesel engine required for normal solar operation
| Specification | Details |
|---|---|
| Product Type | Skid-Mounted Solar LED Light Tower |
| Model | VL6K-A |
| Mounting Configuration | Fixed skid |
| Power Source | Solar |
| Solar Panel Configuration | 3 adjustable panels |
| Light Source | LED |
| Number of Floodlights | 4 |
| Maximum Stated Luminous Flux | 400,000 lm |
| LED Luminous Efficiency | 170 lm/W |
| Colour Temperature | 6000 K – Cool Daylight |
| Colour Rendering Index (CRI) | Ra >75 |
| Beam / Lighting Coverage | Up to 360° |
| Dimming Function | Supported |
| Input Voltage | 100–277 V AC* |
| Ingress Protection | IP65 |
| Operating Temperature | -40°C to +50°C |
| Stated LED Lifespan | Up to 50,000 hours |
| Main Construction | Heavy-duty steel |
| Mast Type | Telescopic |
| Stabilisation | 4 extendable outriggers with adjustable support feet |
| Handling | Integrated forklift pockets |
| Product Weight | Approx. 800 kg |
| Warranty | 2 years |
| Installation Type | Stationary / skid-mounted |
| Typical Applications | Mining, construction, industrial sites, remote worksites, security and temporary area lighting |
