Honda Petrol Powered 6m Mobile LED Site Lighting Tower

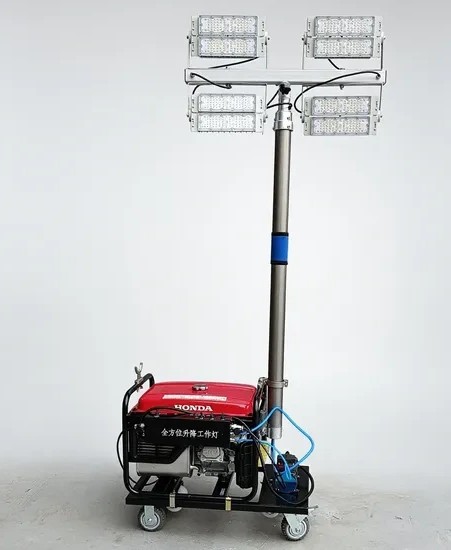

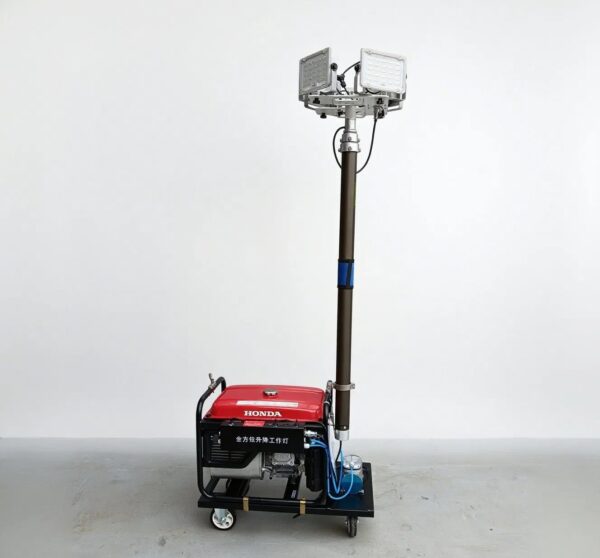

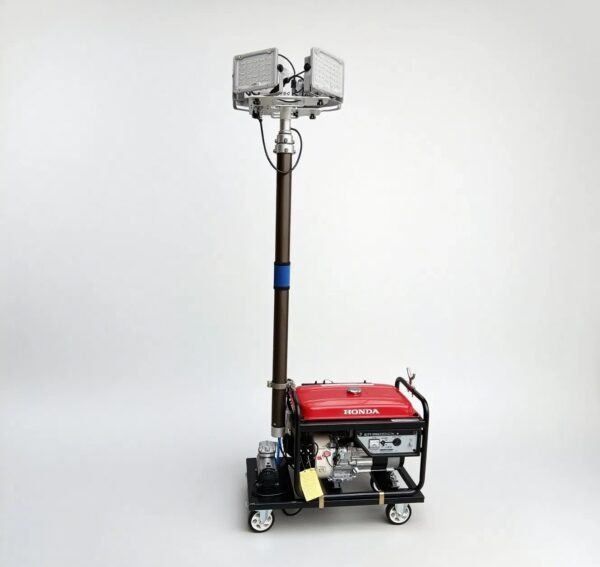

The YGT400-S14 6m Honda Generator LED Mobile Light Tower is a compact, self-powered lighting solution designed for construction sites, maintenance work, emergency operations and temporary outdoor lighting. The selected configuration features four 200W LED floodlights, delivering a combined luminous output of up to 96,000 lumens.
Its adjustable mast extends to a maximum height of 6 metres, allowing the LED floodlights to provide elevated illumination across large working areas. An integrated petrol generator supplies independent AC 220V power, making the unit suitable for remote locations and worksites where mains electricity is unavailable.
Designed for convenient movement around the worksite, the YGT400-S14 incorporates two directional wheels and two universal wheels. Its efficient LED lighting, integrated generator and adjustable mast provide a practical mobile lighting solution for demanding professional applications.
Share this product
Key Features
- 4 × 200W high-output LED floodlights
- 800W total LED lighting power
- Up to 96,000 lumens combined light output
- 5000K–6000K colour temperature
- Adjustable mast up to 6m
- Pneumatic mast lifting system
- Integrated petrol generator
- AC 220V operating voltage
- 50/60Hz generator frequency
- 3kW / 5kW generator configurations
- Single-cylinder, four-stroke engine
- Air-cooled engine system
- Manual or electric starting
- Up to 13 hours continuous operation
- Mobile four-wheel configuration
- 2 directional and 2 universal wheels
- IP65 protection rating
- Warranty: 2 years
Recommended Applications
- Construction sites
- Road construction and maintenance
- Civil engineering projects
- Industrial maintenance
- Emergency and rescue operations
- Utility maintenance
- Infrastructure projects
- Building sites
- Night-time construction
- Plant and equipment maintenance
- Remote worksites
- Municipal works
- Workshops and industrial yards
- Outdoor events
- Temporary site lighting
| Specification | Details |
|---|---|
| TECHNICAL DATA | |
| Model | YGT400-S14 |
| Product Type | Mobile Generator LED Light Tower |
| Selected Lighting Configuration | 4 × 200W LED |
| Generator Brand | Honda |
| Power Source | Petrol Generator |
| Portability | Mobile |
| Working Voltage | AC 220V |
| Rated Frequency | 50/60Hz |
| Protection Rating | IP65 |
| Primary Application | Temporary Outdoor Site Lighting |
| LIGHTING SYSTEM | |
| Light Source Type | LED |
| Lamp Configuration | 4 × LED Floodlights |
| Number of Lamp Heads | 4 |
| Individual Lamp Power | 200W |
| Total Lighting Power | 800W |
| Total Luminous Flux | Up to 96,000 lm |
| Colour Temperature | 5000K–6000K |
| Lighting Type | LED Area Floodlighting |
| Lamp Position | Adjustable |
| MAST | |
| Maximum Mast Height | 6m |
| Mast Type | Adjustable Telescopic Lighting Mast |
| Mast Material | Aviation Aluminium |
| Lifting Method | Pneumatic Lifting |
| Maximum Lighting Height | 6m |
| Lighting Position | Elevated / Adjustable |
| Control Method | Manual Switch + Remote Control |
| GENERATOR | |
| Generator Brand | Honda |
| Generator Type | Petrol Generator |
| Generator Configuration | Integrated |
| Rated Voltage | AC 220V |
| Rated Frequency | 50/60Hz |
| Rated Power Options | 3kW / 5kW |
| Fuel Type | Petrol |
| Fuel Tank Capacity | 15L |
| Continuous Operating Time | Up to 13 Hours |
| Generator Structure | Open-Frame |
| Power Operation | Self-Contained |
| ENGINE | |
| Engine Brand | Honda |
| Engine Type | Single-Cylinder |
| Engine Cycle | Four-Stroke |
| Fuel Type | Petrol |
| Cooling System | Air-Cooled |
| Starting Method | Manual / Electric Start |
| CHASSIS | |
| Chassis Type | Mobile Wheeled Frame |
| Mobility | Mobile |
| Directional Wheels | 2 |
| Universal Wheels | 2 |
| Total Number of Wheels | 4 |
| Worksite Relocation | Yes |
| PROTECTION & CONSTRUCTION | |
| IP Protection Rating | IP65 |
| Outdoor Suitability | Yes |
| Dust Protection | Protected Against Dust Ingress |
| Water Protection | Protected Against Water Jets |
| Mast Construction | Aviation Aluminium |
| Generator Frame | Open-Frame |
| PERFORMANCE | |
| Maximum Mast Height | 6m |
| Maximum Light Output | 96,000 lm |
| Total LED Power | 800W |
| Colour Temperature | 5000K–6000K |
| Maximum Continuous Runtime | Up to 13 Hours |
| Generator Voltage | AC 220V |
| Operating Frequency | 50/60Hz |
| WEIGHT & PACKAGING | |
| Approximate Weight | 118kg |
| Transport Packaging | Wooden Box |
