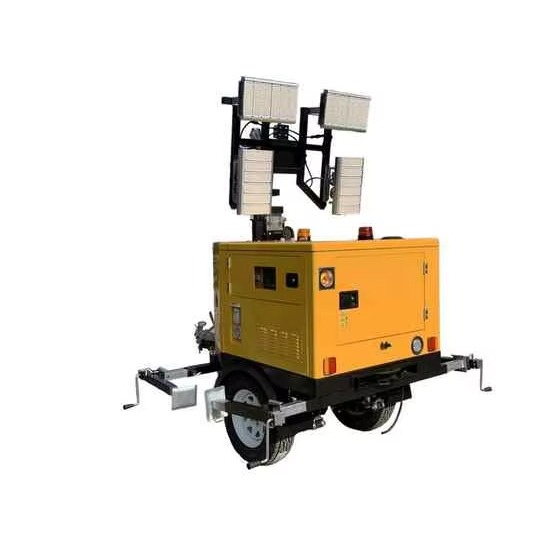

FLT910 Diesel Mobile Light Tower For Construction Sites
The FLT910 Diesel Mobile Light Tower is a heavy-duty, trailer-mounted lighting system designed for construction, mining, roadworks, industrial maintenance and remote outdoor operations. Powered by an integrated diesel generator, the unit provides reliable independent illumination where permanent mains electricity is unavailable.
The FLT910 features 4 × 1000 W high-output lamps, providing up to 440,000 lumens of total illumination with wide-area adjustable coverage of up to 350°. Its telescopic mast, single-axle trailer chassis and large 100-litre fuel tank make it well suited to extended site deployment. With IP65 protection, efficient fuel consumption and an air-cooled diesel power system, the FLT910 provides a robust lighting solution for demanding South African worksites.
Share this product
Key Features
- Diesel-powered mobile lighting tower
- 4 × 1000 W high-output lamps
- 4,000 W total installed lighting power
- Up to 440,000 lm total luminous output
- Wide-area lighting coverage up to 350°
- Telescopic lighting mast
- IP65-rated lighting equipment
- 100-litre diesel fuel tank
- Fuel consumption from approximately 1.05–2 L/h
- Air-cooled diesel power system
- 48 V DC lighting electrical system
- AC/DC power configuration
- Single-axle towable trailer
- Adjustable stabiliser legs for secure deployment
- Integrated jockey wheel for easier positioning
- Enclosed generator and equipment housing
- -20°C to +50°C operating temperature range
- Up to 50,000-hour stated lighting life
- Designed for extended outdoor operation
- CE and ISO-certified manufacturing standards
- 3-year stated warranty
| Specification | Details |
|---|---|
| Model | FLT910 |
| Product Type | Diesel Mobile Light Tower |
| Configuration | Trailer Mounted |
| Primary Power Source | Diesel Generator |
| Fuel Type | Diesel |
| Power Configuration | AC / DC |
| Lighting System | |
| Number of Lights | 4 |
| Power per Light | 1,000 W |
| Total Lighting Power | 4,000 W |
| Total Luminous Flux | Up to 440,000 lm |
| Approx. Output per Lamp | Up to 110,000 lm |
| Colour Temperature | 4100 K Neutral White |
| Lighting Coverage | Up to 350° |
| Dimming Function | Supported |
| Lighting Voltage | 48 V DC |
| Ingress Protection | IP65 |
| Stated Working Life | Up to 50,000 hours |
| Operating Temperature | -20°C to +50°C |
| Lamp Housing Material | Steel |
| Mast System | |
| Mast Type | Telescopic |
| Lighting Direction | Multi-directional / adjustable |
| Deployment | Elevated area lighting |
| Wind Resistance | Rated below Grade 6 |
| Generator & Fuel System | |
| Generator Type | Integrated diesel generator |
| Cooling System | Air cooled |
| Fuel Tank Capacity | 100 litres |
| Fuel Consumption | Approx. 1.05–2 L/h |
| Estimated Runtime at 2 L/h | Approx. 50 hours |
| Estimated Runtime at 1.05 L/h | Up to approx. 95 hours |
| Generator Housing | Enclosed |
| Trailer & Mobility | |
| Trailer Type | Single-axle mobile trailer |
| Mobility | Towable |
| Axle Configuration | Single axle |
| Tow Coupling | Fitted |
| Jockey Wheel | Fitted |
| Stabilisation | Adjustable stabiliser legs |
| Equipment Enclosure | Enclosed protective housing |
| Outdoor Suitability | Heavy-duty outdoor operation |
| Dimensions & Weight | |
| Packaged Length | 2,340 mm |
| Packaged Width | 1,120 mm |
| Packaged Height | 1,100 mm |
| Stated Gross Weight | Approx. 405 kg |
| Loading Quantity | 10 / 20 units depending on container configuration |
| General | |
| Application | Outdoor Worksite Lighting |
| Typical Applications | Construction, mining, roadworks, industrial and emergency lighting |
| Manufacturing Capacity | Up to 500 units/month |
| Warranty | 3 years |
