LumaForce Mobile Solar LED Light Tower
The LumaForce LF-LT4102 Mobile Solar LED Light Tower is a heavy-duty, trailer-mounted lighting solution developed for construction, mining, roadworks, infrastructure projects and remote outdoor operations. Its solar-powered battery system provides dependable off-grid illumination while helping reduce fuel consumption, operating noise and routine engine maintenance.

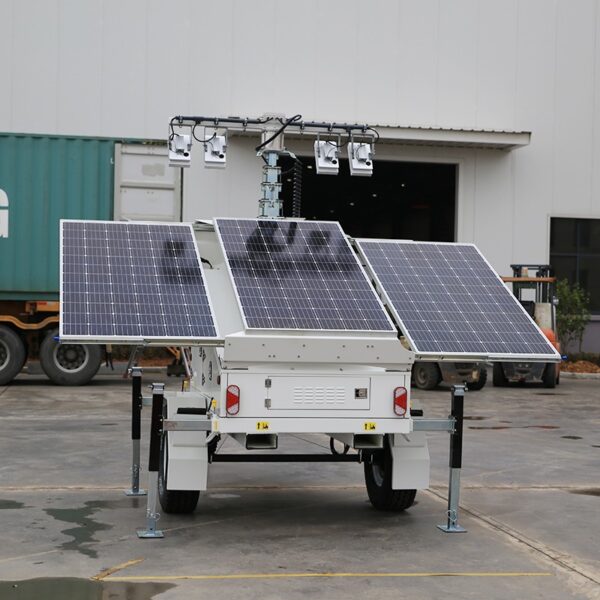

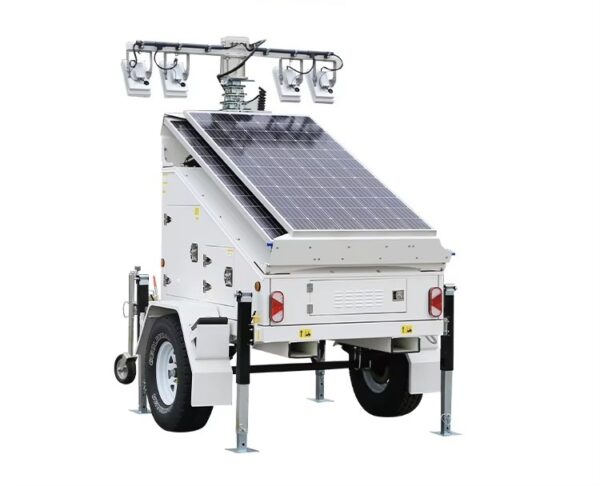

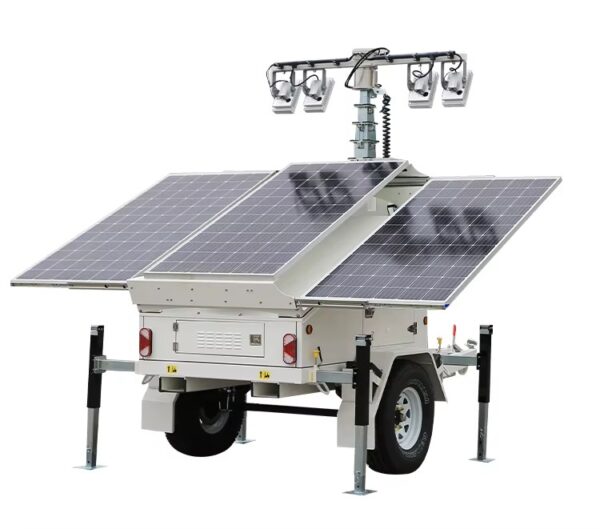

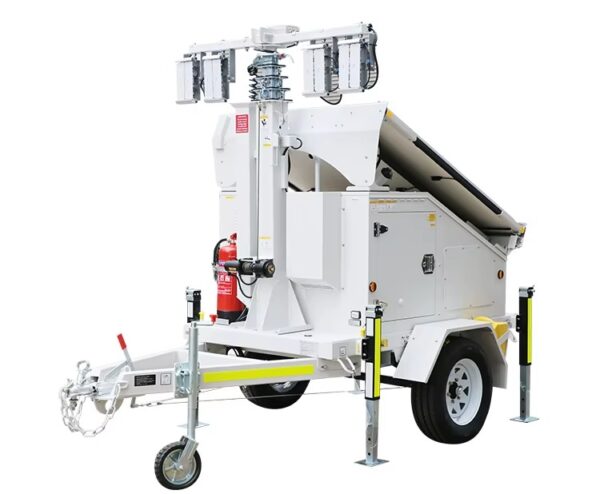

The LF-LT4102 features four large adjustable solar panels, a 9 m electric telescopic mast and a multi-directional high-output LED floodlight assembly. The lighting system provides a 6000 K daylight colour temperature, 120° beam angle and IP65 protection for demanding outdoor environments. A robust single-axle trailer chassis with four extendable stabilisers provides mobility and stability during deployment, making the unit well suited to temporary and long-duration site lighting applications.
Share this product
Key Features
- Solar-powered mobile LED lighting tower
- Four large adjustable solar panels
- High-capacity battery energy storage system
- 800 Ah / 900 Ah / 1200 Ah battery options
- 9 m electrically operated telescopic mast
- High-output LED floodlight configuration
- Up to 8 × 400 W stated lighting configuration
- High-efficiency LED technology rated at 110 lm/W
- 6000 K daylight illumination
- Wide 120° beam angle
- IP65-rated outdoor lighting system
- Dimming functionality supported
- AC and DC power compatibility stated
- Single-axle towable trailer design
- Four extendable stabiliser/outrigger legs
- Adjustable support feet for secure deployment
- Heavy-duty steel equipment enclosure
- Rear road lights and reflectors
- Up to 50,000-hour stated LED working life
- Designed for demanding outdoor and remote-site applications
- 2-year stated warranty
| Specification | Details |
|---|---|
| Product Name | LumaForce LF-LT4102 Mobile Solar LED Light Tower |
| Brand | LumaForce |
| Model | LF-LT4102 |
| Product Type | Mobile Solar LED Light Tower |
| Primary Power Source | Solar / Battery |
| Auxiliary Power Supply | AC / DC stated |
| AC Input Voltage | 220 V AC ±10% |
| Frequency | 50 Hz / 60 Hz |
| Lighting Technology | LED |
| LED Power Configuration | Up to 8 × 400 W stated* |
| Maximum Stated LED Power | Up to 3,200 W* |
| Stated Light Output | 14,000 lm* |
| Additional Stated Luminous Flux | 44,000 lm* |
| Luminous Efficiency | 110 lm/W |
| Colour Temperature | 6000 K Daylight |
| Colour Rendering Index (CRI) | Ra 70 |
| Beam Angle | 120° |
| Dimming Function | Yes |
| Ingress Protection | IP65 |
| Waterproof Rating | IP65 |
| Battery Capacity Options | 800 Ah / 900 Ah / 1200 Ah |
| Solar Panel Configuration | 4 large adjustable panels |
| Mast Type | Electric telescopic mast |
| Maximum Mast Height | 9 m |
| Lighting Arrangement | Multi-directional LED floodlight array |
| Stated LED Working Life | Up to 50,000 hours |
| Operating Temperature | -30°C to +65°C |
| Lamp Base Material | Steel |
| Main Equipment Housing | Enclosed |
| Trailer Configuration | Single axle |
| Mobility | Towable |
| Stabilisation | 4 extendable stabiliser/outrigger legs |
| Stabiliser Feet | Adjustable |
| Road Lighting | Rear lights and reflectors fitted |
| Application | Outdoor mobile lighting |
| Typical Environment | Construction, mining, roadworks and industrial sites |
| Stated Certification | ISO 9001 |
| Warranty | 2 years |
| Package Length | 2,200 mm |
| Package Width | 1,600 mm |
| Package Height | 1,700 mm |
| Package Configuration | Single unit |
