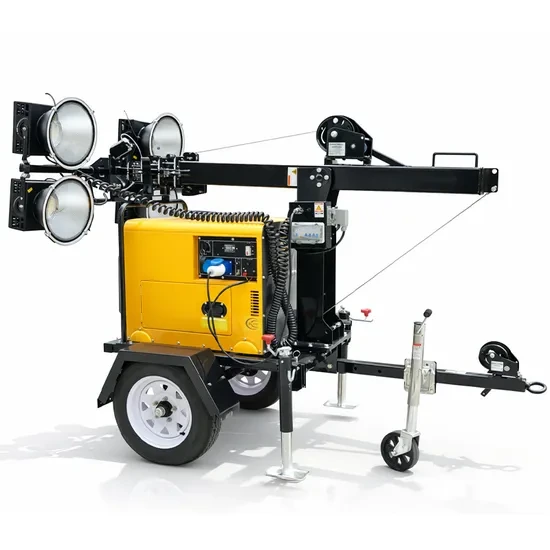

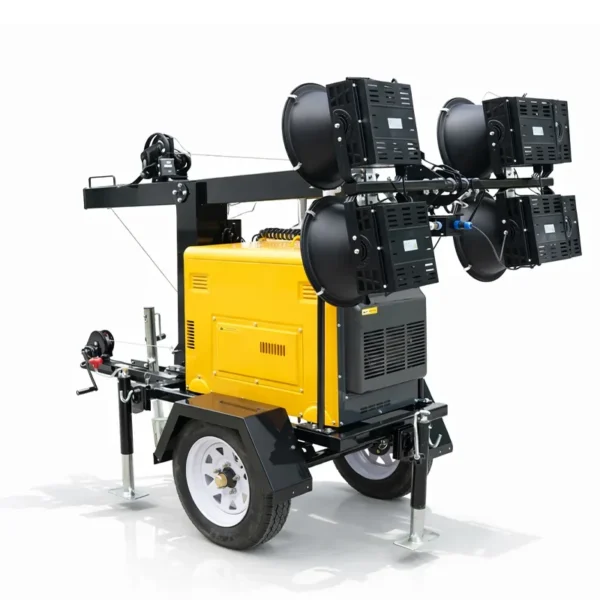

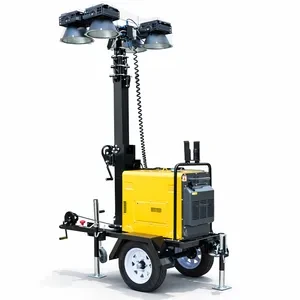

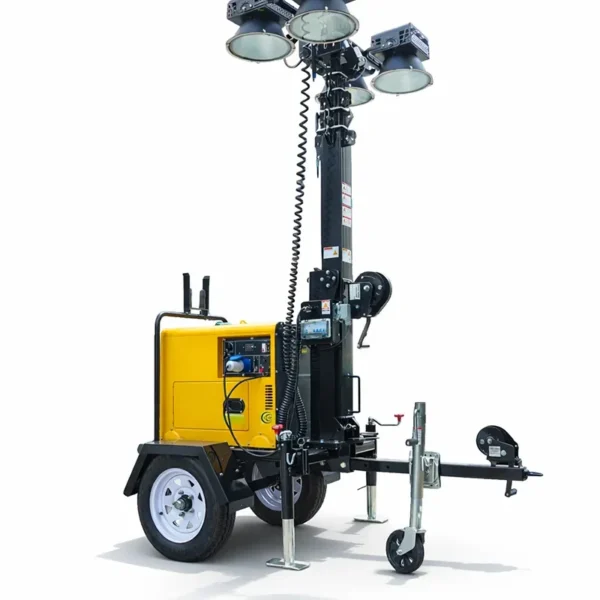

GLTK7050-K103 8m Diesel Generator Mobile Light Tower
Designed for demanding outdoor environments, the GLTK7050-K103 Diesel Construction Mobile Light Tower combines powerful area lighting, an integrated diesel generator and a mobile trailer platform in one self-contained unit.
The lighting system consists of four 1,000W metal halide floodlights, each producing approximately 110,000 lumens for a total output of up to 440,000 lumens. This high-output configuration is well suited to large construction areas, mining sites, infrastructure projects and night-time maintenance work.
Power is supplied by a GE192F air-cooled four-stroke diesel engine and LD8500SE generator producing 6.5kW rated power and 7kW maximum output. The 8m steel mast uses a manual lifting system and provides 340° rotation for effective light positioning.
Share this product
Key Features
- 4 × 1,000W metal halide floodlights
- Up to 440,000 lumens total light output
- 110,000 lumens per floodlight
- Maximum mast height of 8m
- Heavy-duty three-section steel mast
- Manual mast lifting system
- 340° mast rotation
- Integrated LD8500SE diesel generator
- 6.5kW rated generator output
- 7kW maximum generator output
- GE192F four-stroke diesel engine
- Air-cooled engine system
- Electric-start operation
- 220V / 50Hz electrical system
- Mobile trailer-mounted configuration
- Designed for independent off-grid operation

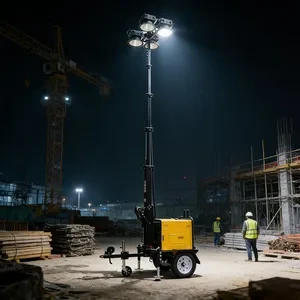

Recommended Applications
- Construction sites
- Mining and quarry operations
- Roadworks and road maintenance
- Civil engineering projects
- Emergency and rescue operations
- Railway maintenance
- Infrastructure projects
- Industrial maintenance
- Utility works
- Night-time construction
- Remote worksites
- Temporary site lighting
- Municipal maintenance
- Outdoor work areas
- Large-scale project sites
| Specification | Details |
|---|---|
| GENERAL | |
| Model | GLTK7050-K103 |
| Product Type | Mobile Light Tower |
| Tower Configuration | Trailer-Mounted |
| Portability | Mobile |
| Primary Application | Temporary Outdoor Site Lighting |
| Power Configuration | Integrated Diesel Generator |
| LIGHTING SYSTEM | |
| Lamp Type | Metal Halide |
| Lighting Type | Floodlight |
| Number of Floodlights | 4 |
| Lamp Power | 4 × 1,000W |
| Total Installed Lamp Power | 4,000W |
| Luminous Output per Lamp | 110,000 lm |
| Total Luminous Output | 440,000 lm |
| Lighting Arrangement | Four High-Output Floodlights |
| Light Direction | Adjustable |
| MAST | |
| Maximum Mast Height | 8m |
| Number of Mast Sections | 3 |
| Mast Construction | Steel |
| Lifting System | Manual |
| Mast Rotation | 340° |
| Mast Function | Elevated Area Lighting |
| GENERATOR | |
| Generator Model | LD8500SE |
| Generator Type | Diesel Generator |
| Rated Generator Power | 6.5kW |
| Maximum Generator Power | 7kW |
| Rated Voltage | 220V |
| Frequency | 50Hz |
| Generator Installation | Integrated |
| Power Operation | Self-Contained |
| ENGINE | |
| Engine Model | GE192F |
| Fuel Type | Diesel |
| Engine Type | Vertical, 4-Stroke |
| Cooling System | Air-Cooled |
| Starting System | Electric Start |
| CHASSIS & MOBILITY | |
| Chassis Configuration | Mobile Trailer |
| Tower Mounting | Trailer-Mounted |
| Mobility | Towable / Mobile |
| Stabilisation | Support Legs |
| Intended Terrain | Outdoor Worksites |
| DIMENSIONS & WEIGHT | |
| Generator Gross Weight | 170kg |
| Generator Package Dimensions | 950 × 560 × 840mm |
| Complete Unit Weight | 650kg |
| Complete Package Length | 2,200mm |
| Complete Package Width | 1,400mm |
| Complete Package Height | 1,880mm |
| Complete Package Dimensions | 2,200 × 1,400 × 1,880mm |
| Transport Packaging | Standard Export Plywood Case |
