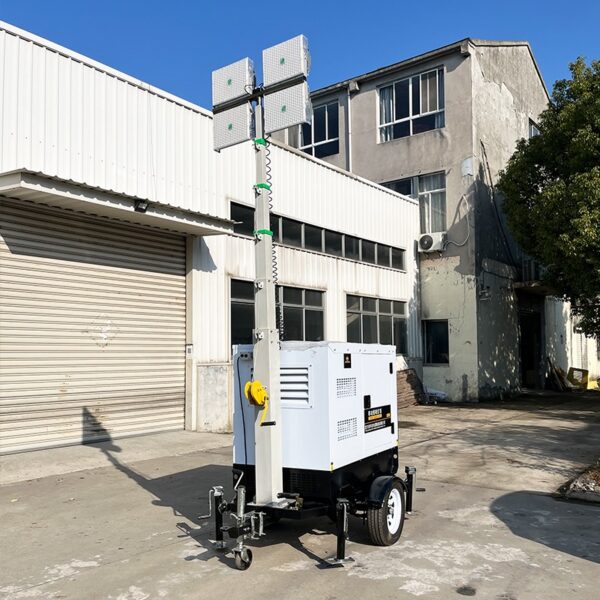

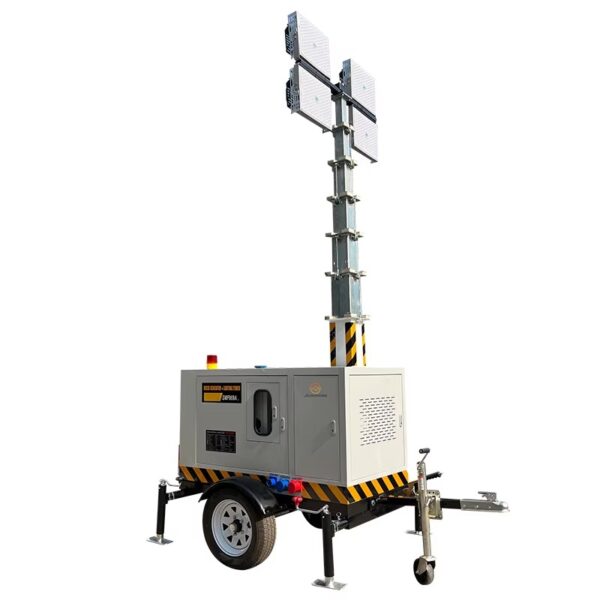

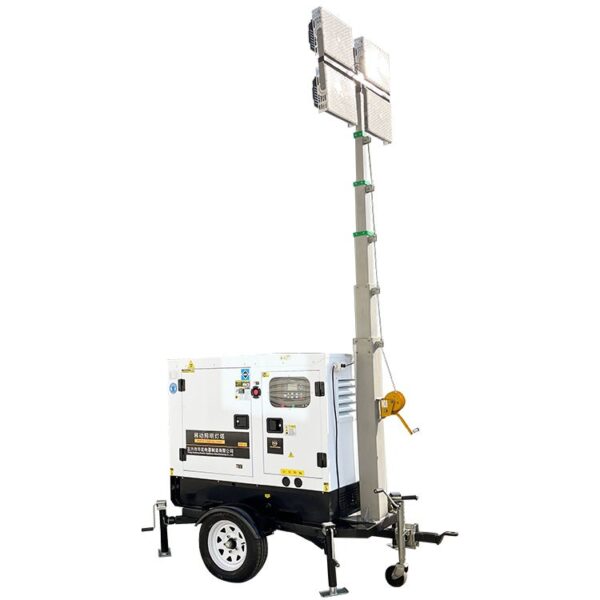

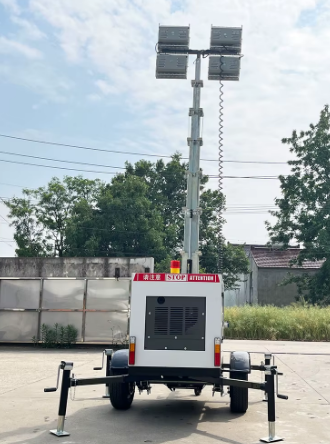

TG-LTG711 9M Diesel LED Light Tower
The TG-LTG711 Diesel LED Light Tower is a heavy-duty mobile lighting solution designed for mining, construction, roadworks, civil engineering and large industrial worksites. It combines 4 × 1000 W high-output LED floodlights with a 9 metre hydraulic lifting mast, delivering up to 360,000 lumens across an illumination area of approximately 2,000–3,000 m².
The lighting tower is powered by an integrated 8 kW diesel generator with electric start, AVR voltage regulation and a 25-litre fuel tank. Its single-axle trailer incorporates four removable stabilising jacks, a retractable supporting wheel and manual braking system for practical site deployment. With IP65 lighting protection, adjustable floodlights and a sound-reduced generator enclosure, the TG-LTG711 is built for reliable night-time operation in demanding outdoor environments.
Share this product
Key Features
- 9 m hydraulic lifting mast
- 4 × 1000 W high-output LED floodlights
- 4,000 W total installed LED lighting power
- Up to 360,000 lm total luminous output
- Approx. 2,000–3,000 m² illumination coverage
- 360° horizontal floodlight adjustment
- 90° vertical floodlight adjustment
- IP65-rated LED lighting system
- Integrated 8 kW diesel generator
- 7.5 kW rated generator output
- Sound-reduced generator enclosure
- Electric-start 4-stroke diesel engine
- 25-litre fuel tank
- AVR automatic voltage regulation
- Single-axle towable trailer
- Four removable swivel stabilising jacks
- Retractable supporting jockey wheel
- Manual trailer brake
- Maximum towing speed of 80 km/h
- Grade 8 wind resistance
- Compact transport configuration
- Designed for demanding mining and construction environments
| Specification | Details |
|---|---|
| Model | TG-LTG711 |
| Product Type | Mobile Diesel LED Light Tower |
| Configuration | Trailer Mounted |
| Primary Power Source | Diesel |
| Application | Mining, Construction & Industrial Lighting |
| Lighting System | |
| Light Source | LED |
| Number of Floodlights | 4 |
| Power per Floodlight | 1,000 W |
| Total Lighting Power | 4,000 W |
| Luminous Flux per Floodlight | 90,000 lm |
| Total Luminous Flux | Up to 360,000 lm |
| Illumination Area | Approx. 2,000–3,000 m² |
| Lighting Voltage | 220 V AC |
| Lighting Frequency | 50 Hz |
| Protection Rating | IP65 |
| Horizontal Lamp Rotation | 360° manual |
| Vertical Lamp Adjustment | 90° manual |
| Mast System | |
| Mast Type | Hydraulic lifting mast |
| Maximum Mast Height | 9 m |
| Maximum Working Height | 9,000 mm |
| Mast Operation | Hydraulic |
| Generator System | |
| Generator Type | Enclosed / sound-reduced |
| Fuel Type | Diesel |
| Rated Generator Power | 7.5 kW |
| Maximum Generator Power | 8 kW |
| Generator Voltage | 220 V AC |
| Frequency | 50 Hz |
| Voltage Regulation | AVR |
| Power Factor | 1.0 |
| Engine Specifications | |
| Engine Model | 198FBE |
| Engine Type | 4-stroke, air-cooled diesel |
| Number of Cylinders | Single cylinder |
| Aspiration | Naturally aspirated |
| Engine Displacement | 633 cc |
| Starting System | Electric start |
| Starting Battery | 30 Ah |
| Engine Oil Capacity | 1.65 L |
| Fuel Tank Capacity | 25 L |
| Operating Runtime | Approx. 10 hours under load |
| Sound Level | Approx. 72 dB(A) at 7 m |
| Trailer & Mobility | |
| Trailer Configuration | Single axle |
| Number of Wheels | 2 |
| Tyre Size | 165 R13 |
| Stabilising System | 4 removable swivel jacks |
| Tow Coupling | Ball-type coupling |
| Tow Bar | Retractable supporting-wheel tow bar |
| Trailer Brake | Manual |
| Rear Safety Equipment | Tail reflectors |
| Maximum Towing Speed | 80 km/h |
| Wind Resistance | Grade 8 |
| Dimensions & Weight | |
| Maximum Working Dimensions | 3,200 × 2,800 × 9,000 mm |
| Retracted / Transport Size | 2,400 × 1,500 × 2,000 mm |
| Packaging Dimensions | 1,800 × 1,600 × 2,200 mm |
| Gross Weight | Approx. 950 kg |
