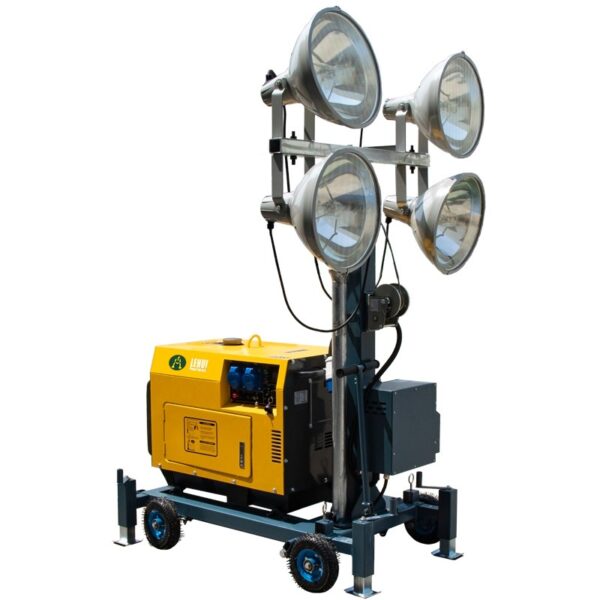

TSB-2400-C Compact Diesel Mobile Light Tower
SKU:
JL-387426
R37,999.00
The TSB-2400-C Compact Diesel Light Tower is a portable, cost-effective lighting solution designed for construction sites, mining operations, roadworks, maintenance projects and remote outdoor applications. The unit is available with either 4 × 350 W LED floodlights producing up to 210,000 lumens or 4 × 1000 W metal halide lamps producing up to 440,000 lumens.
Powered by an HL186FA air-cooled diesel engine, the TSB-2400-C combines a compact generator system with a 5 metre manually operated multi-section telescopic mast. A towable chassis with ring or ball hitch options allows convenient relocation between worksites, while the 16-litre fuel tank and aluminium floodlight housings provide a practical configuration for temporary site illumination.
Share this product
Key Features
- Choice of LED or metal halide lighting
- 4 × 350 W high-efficiency LED floodlights
- 4 × 1000 W metal halide lighting option
- Up to 210,000 lm LED luminous output
- Up to 440,000 lm metal halide luminous output
- 5 m manual telescopic mast
- Multi-section vertical mast design
- HL186FA diesel engine
- Air-cooled engine system
- 4.2 kW output at 50 Hz
- 4.5 kW output at 60 Hz
- Compact 16-litre diesel fuel tank
- Aluminium floodlight housings
- Ring or ball-type towing hitch
- Compact trailer-mounted configuration
- Designed for easy site relocation
- Suitable for construction and mining operations
- Self-contained lighting for remote worksites
| Specification | Details |
|---|---|
| TECHNICAL DATA | — |
| Model | TSB-2400-C |
| Product Type | Compact Diesel Mobile Light Tower |
| Power Source | Diesel Generator |
| Installation | Mobile / Trailer Mounted |
| Lighting Options | LED / Metal Halide |
| LED Configuration | 4 × 350 W |
| Metal Halide Configuration | 4 × 1000 W |
| Total LED Lighting Power | 1,400 W |
| Total Metal Halide Lighting Power | 4,000 W |
| LED Luminous Output | Up to 210,000 lm |
| Metal Halide Luminous Output | Up to 440,000 lm |
| Generator Output – 50 Hz | 4.2 kW |
| Generator Output – 60 Hz | 4.5 kW |
| Standard Frequency | 50 Hz |
| Fuel Tank Capacity | 16 L |
| Maximum Mast Height | 5 m |
| Mast Operation | Manual |
| Primary Applications | Construction, Mining, Roadworks & Industrial Lighting |
| ENGINE | — |
| Engine Model | HL186FA |
| Engine Type | Industrial Diesel Engine |
| Fuel Type | Diesel |
| Cooling System | Air Cooled |
| Rated Output – 50 Hz | 4.2 kW |
| Rated Output – 60 Hz | 4.5 kW |
| Engine Speed – 50 Hz | 1,500 rpm |
| Engine Speed – 60 Hz | 1,800 rpm |
| Fuel Tank Capacity | 16 L |
| Engine Installation | Integrated Generator System |
| ALTERNATOR | — |
| Alternator Type | AC Generator Alternator |
| Generator Output – 50 Hz | 4.2 kW |
| Generator Output – 60 Hz | 4.5 kW |
| Frequency Options | 50 / 60 Hz |
| Drive Source | HL186FA Diesel Engine |
| Generator Configuration | Integrated |
| LIGHTING SYSTEM | — |
| Lamp Options | LED / Metal Halide |
| LED Lamp Quantity | 4 |
| LED Power per Lamp | 350 W |
| LED Total Power | 1,400 W |
| LED Luminous Output | 210,000 lm |
| Approx. LED Output per Lamp | 52,500 lm |
| Metal Halide Lamp Quantity | 4 |
| Metal Halide Power per Lamp | 1,000 W |
| Metal Halide Total Power | 4,000 W |
| Metal Halide Luminous Output | 440,000 lm |
| Approx. Metal Halide Output per Lamp | 110,000 lm |
| Floodlight Housing Material | Aluminium |
| Lighting Direction | Adjustable |
| MAST | — |
| Mast Type | Multi-Section Telescopic Mast |
| Mast Orientation | Vertical |
| Mast Operating Mode | Manual |
| Maximum Mast Height | 5 m |
| Maximum Lighting Height | 5,000 mm |
| Mast Sections | Multiple Telescopic Sections |
| Lighting Mount | Multi-Floodlight Assembly |
| Deployment | Manual Elevation |
| CHASSIS | — |
| Chassis Type | Compact Mobile Trailer |
| Mobility | Towable |
| Towing Connection | Ring or Ball Hitch |
| Installation Type | Trailer Mounted |
| Site Deployment | Mobile / Temporary |
| Construction | Heavy-Duty Worksite Configuration |
| CANOPY | — |
| Canopy Configuration | Integrated Generator Housing |
| Engine Protection | Enclosed Equipment Installation |
| Generator Installation | Integrated with Trailer |
| Fuel Tank Integration | 16 L |
| Service Application | Outdoor Worksite Operation |

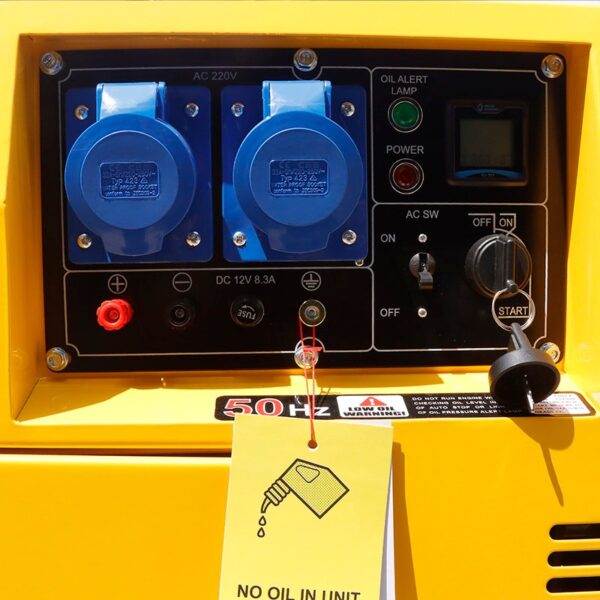

| CONTROL PANEL | — |
| Generator Control | Integrated |
| Lighting Control | Integrated |
| Engine Monitoring | Integrated Generator Controls |
| Frequency Configuration | 50 / 60 Hz |
| Power Management | Generator-to-Lighting Supply |
| Operator Access | Local Equipment Control |
