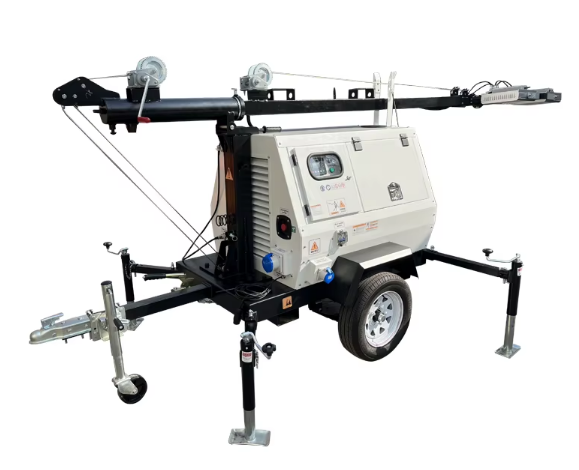

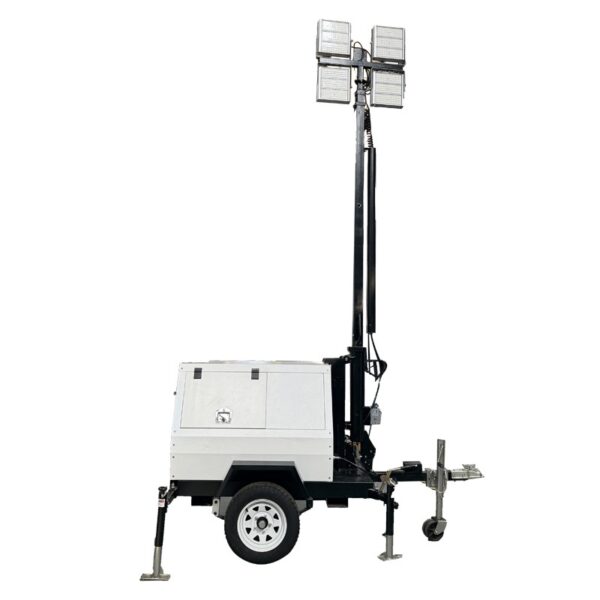

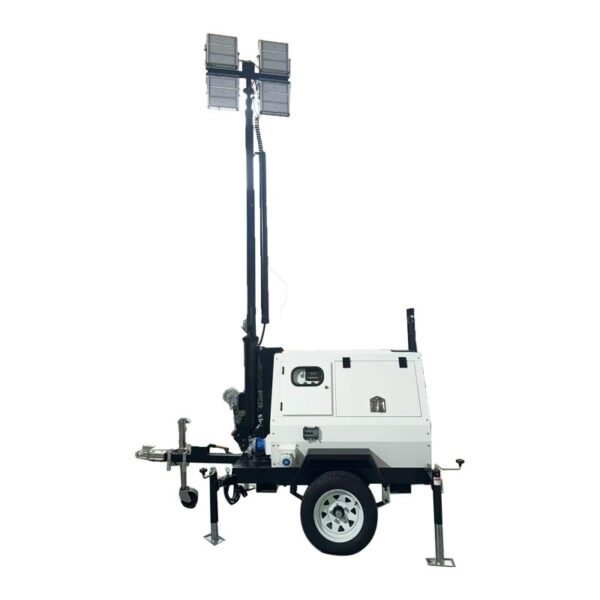

TY9500 Portable Diesel LED Light Tower
The TY9500 Portable Diesel LED Light Tower is a high-output mobile lighting system designed for construction sites, mining operations, roadworks, emergency response and industrial outdoor applications. Powered by an integrated diesel system, the tower provides independent site illumination where access to mains electricity is limited or unavailable.
Equipped with 4 × 500 W LED floodlights, the TY9500 delivers a combined lighting output of up to 300,000 lumens with efficient 5000 K daylight illumination. The wide-angle lighting configuration provides up to 340° coverage, while the IP67-rated lighting system offers excellent protection against dust and water ingress. With high-efficiency LED technology and a stated working life of up to 50,000 hours, the TY9500 is engineered for dependable long-duration outdoor operation.
Share this product
Key Features
- Diesel-powered portable lighting tower
- 4 × 500 W high-output LED floodlights
- 2,000 W total LED lighting power
- Up to 300,000 lm total luminous output
- High LED efficiency of 150 lm/W
- 5000 K daylight illumination
- Wide 340° lighting coverage
- IP67 dust and water protection
- 220 V electrical system
- High-efficiency LED lighting technology
- Dimming functionality supported
- Up to 50,000-hour LED working life
- Self-contained power supply for remote locations
- White exterior finish
- Designed for demanding outdoor environments
- Suitable for mobile and temporary deployment
- Ideal for construction, mining and emergency lighting
- 1-year warranty
| Specification | Details |
|---|---|
| Model | TY9500 |
| Product Type | Portable Diesel LED Light Tower |
| Configuration | Mobile / Portable |
| Primary Power Source | Diesel |
| Fuel Type | Diesel |
| Application | Outdoor Area & Worksite Lighting |
| Lighting System | |
| Light Source | LED |
| Lamp Type | High-Output LED Floodlight |
| Number of Floodlights | 4 |
| Power per Floodlight | 500 W |
| Total Installed Lighting Power | 2,000 W |
| Luminous Flux per Floodlight | Approx. 75,000 lm |
| Total Luminous Flux | Up to 300,000 lm |
| Luminous Efficiency | 150 lm/W |
| Colour Temperature | 5000 K Daylight |
| Emitting Colour | White |
| Beam / Lighting Coverage | Up to 340° |
| Dimming Function | Supported |
| Ingress Protection | IP67 |
| LED Working Life | Up to 50,000 hours |
| Electrical & Power System | |
| Electrical Voltage | 220 V |
| Power Generation | Integrated diesel power system |
| External Mains Requirement | Not required during diesel operation |
| Construction & Operation | |
| Exterior Colour | White |
| Outdoor Suitability | Yes |
| Dust Protection | IP67 rated |
| Water Protection | IP67 rated |
| Deployment Type | Temporary / Mobile |
| Lighting Direction | Wide-area configurable illumination |
| Operating Environment | Outdoor / Industrial |
| Continuous Lighting Capability | Designed for extended site operation |
| Applications | |
| Construction Sites | Suitable |
| Mining & Quarry Sites | Suitable |
| Roadworks | Suitable |
| Industrial Sites | Suitable |
| Emergency Lighting | Suitable |
| Remote Worksites | Suitable |
| Infrastructure Projects | Suitable |
| Outdoor Maintenance | Suitable |
| Warranty | 1 year |
