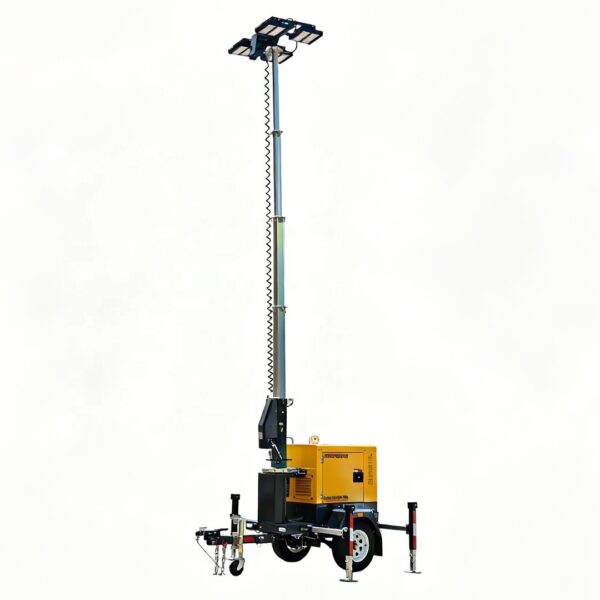

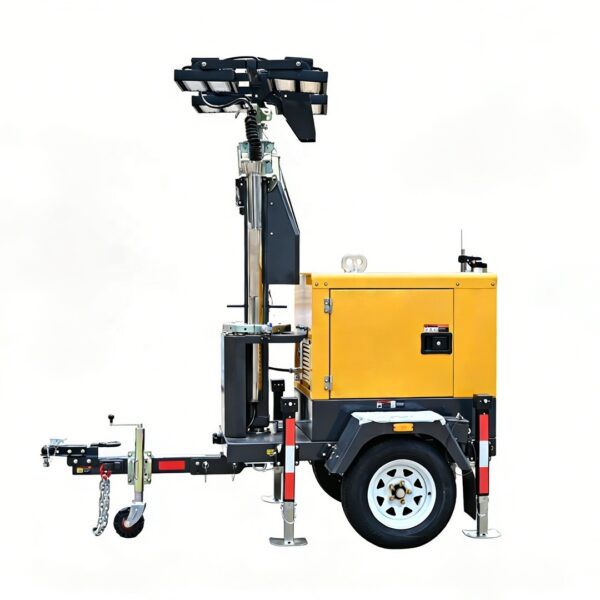

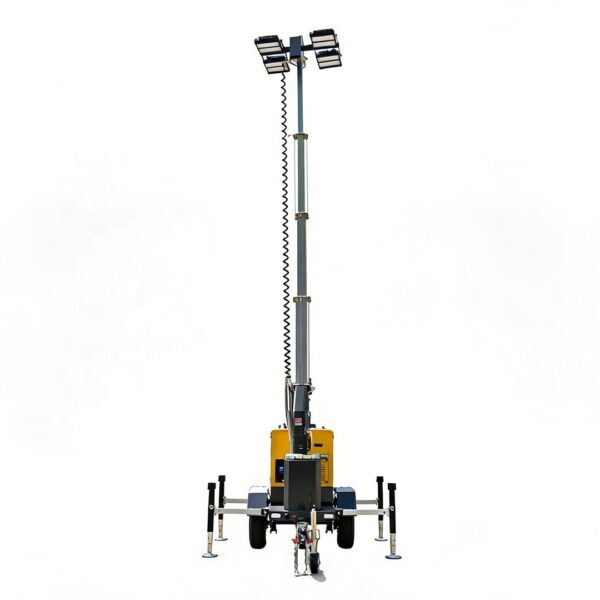

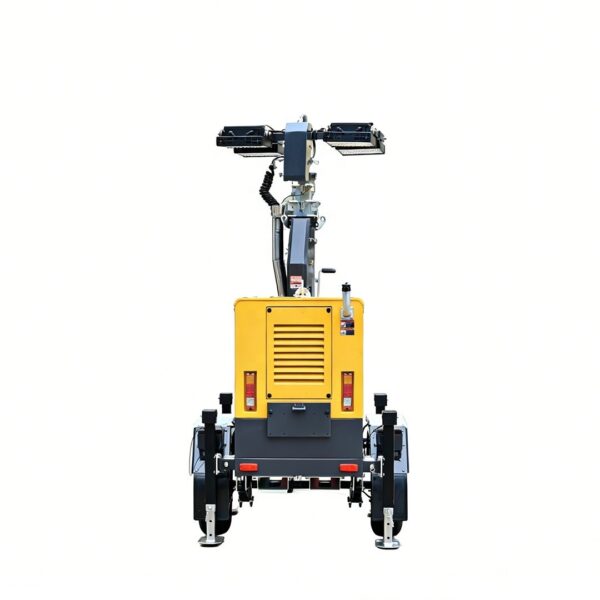

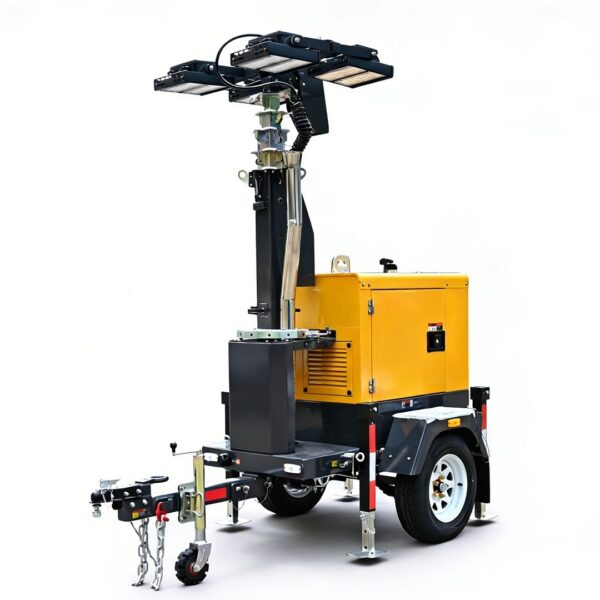

UGT4000LLED Diesel LED Mobile Light Tower
The UGT4000LLED Diesel LED Mobile Light Tower is a heavy-duty, trailer-mounted lighting solution designed for construction, mining, roadworks, industrial maintenance and emergency applications. Powered by an integrated diesel generator, the unit provides reliable independent illumination for remote worksites and locations without permanent electrical infrastructure.
The UGT4000LLED features four high-output LED floodlights producing up to 300,000 lumens, with a maximum mast height of 7 metres for elevated area illumination. The lighting system provides 5000 K daylight output, a wide 180° beam angle and IP67 protection against demanding outdoor conditions. Manual or electric mast lifting options, a low stated noise level of 68 dB(A) at 7 m and a mobile trailer configuration make it suitable for extended professional site use.
Share this product
Key Features
- Diesel-powered mobile LED lighting tower
- Four high-output LED floodlights
- Up to 300,000 lm total luminous output
- High-efficiency 160 lm/W LED technology
- 5000 K daylight illumination
- Wide 180° beam angle
- Maximum mast height of 7 m
- Manual or electric mast lifting system
- IP67-rated lighting equipment
- 220 V AC lighting system
- AC/DC power configuration
- Dimming functionality supported
- Low stated noise level of 68 dB(A) at 7 m
- 3,000 / 3,600 rpm generator configuration
- Up to 50,000-hour LED working life
- Wide -45°C to +60°C operating temperature range
- Towable trailer configuration
- Designed for demanding outdoor environments
- Suitable for remote and temporary site deployment
- 2-year warranty
| Specification | Details |
|---|---|
| Model | UGT4000LLED |
| Product Type | Diesel LED Mobile Light Tower |
| Configuration | Trailer Mounted |
| Primary Power Source | Diesel Generator |
| Power Supply | AC / DC |
| Fuel Type | Diesel |
| Lighting System | |
| Light Source | LED |
| Number of Floodlights | 4 |
| Total Luminous Output | Up to 300,000 lm |
| Approx. Output per Floodlight | Up to 75,000 lm |
| Luminous Efficiency | 160 lm/W |
| Approx. Total LED Power | 2,000 W |
| Colour Temperature | 5000 K Daylight |
| Colour Rendering Index (CRI) | Ra 70 |
| Beam Angle | 180° |
| Emitting Colour | White |
| Dimming Function | Yes |
| Ingress Protection | IP67 |
| LED Working Life | Up to 50,000 hours |
| Mast System | |
| Mast Type | Telescopic |
| Maximum Mast Height | 7 m |
| Maximum Lighting Height | 7,000 mm |
| Mast Lifting System | Manual / Electric |
| Lighting Direction | Adjustable elevated area lighting |
| Electrical & Generator System | |
| Lighting Voltage | 220 V AC |
| Input / Operating Voltage | 220 V |
| Generator Speed | 3,000 / 3,600 rpm |
| Generator Configuration | Integrated diesel generator |
| Noise Level | Approx. 68 dB(A) at 7 m |
| Operating Conditions | |
| Minimum Operating Temperature | -45°C |
| Maximum Operating Temperature | +60°C |
| Environmental Protection | IP67 |
| Outdoor Operation | Suitable |
| Trailer & Mobility | |
| Installation Type | Mobile / trailer mounted |
| Mobility | Towable |
| Deployment Type | Temporary / mobile |
| Site Power Requirement | Self-contained diesel operation |
| Applications | |
| Construction Sites | Suitable |
| Mining & Quarry Sites | Suitable |
| Roadworks | Suitable |
| Industrial Sites | Suitable |
| Emergency Lighting | Suitable |
| Infrastructure Projects | Suitable |
| Remote Worksites | Suitable |
| Warranty | 2 years |
