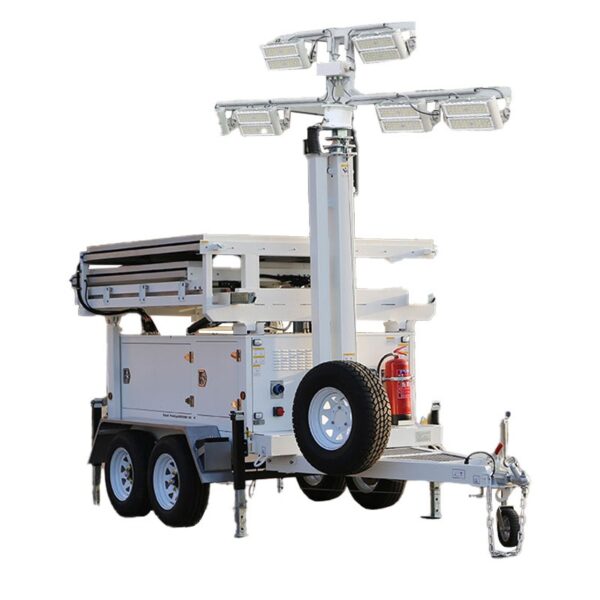

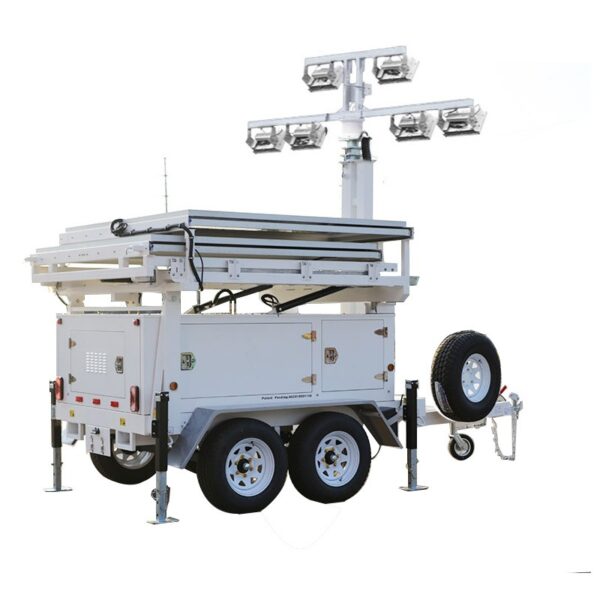

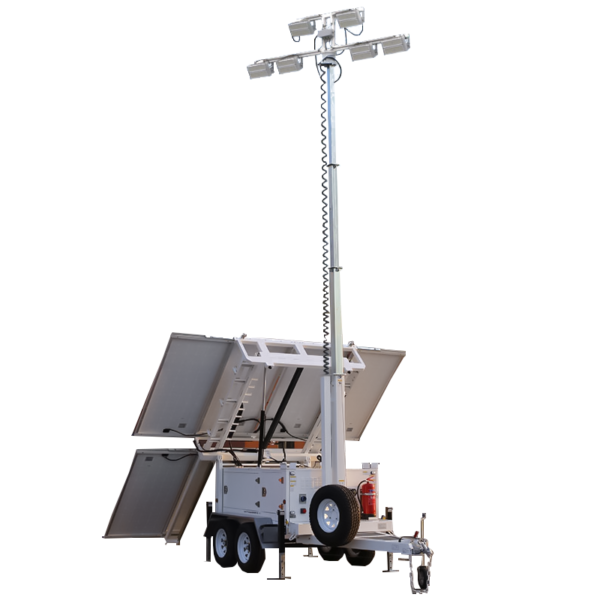

BTL-LTY41-U04 Solar LED Light Tower
The LumaForce BTL-LTY41-U04 Solar Oilfield LED Light Tower is a high-capacity, heavy-duty mobile lighting system designed for mining, oilfield operations, drilling sites, large construction projects and demanding remote worksites. Its solar-powered battery system provides powerful off-grid illumination with reduced fuel consumption, noise and routine engine maintenance.
Built on a robust tandem-axle trailer, the BTL-LTY41-U04 features eight large solar panels, a telescopic mast and eight directional LED floodlights. The system delivers up to 180,000 lm of high-output 5000 K daylight illumination, with IP67 protection for harsh outdoor conditions. Lead-acid or lithium battery storage options are available, while an optional backup generator provides additional operating flexibility for extended or low-sunlight applications.
Share this product
Key Features
- Heavy-duty solar-powered oilfield lighting tower

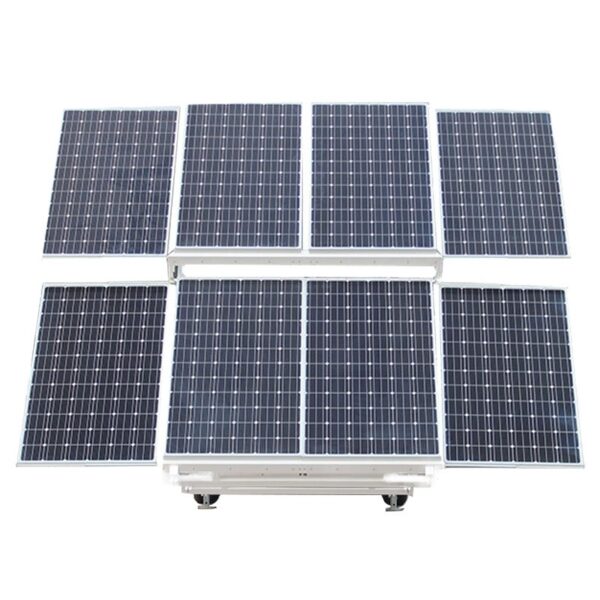

- Eight large solar panels for high-capacity solar generation
- Eight directional high-output LED floodlights
- Up to 180,000 lm total stated light output
- High-efficiency LED technology rated at 150 lm/W
- 5000 K daylight illumination
- 60° beam angle for concentrated worksite lighting
- IP67-rated lighting system
- 24 V DC electrical system
- Lead-acid or lithium battery storage options
- Optional backup generator
- Dimming functionality supported
- Telescopic mast system
- Tandem-axle heavy-duty trailer
- Adjustable stabiliser legs for secure deployment
- Jockey wheel for easier positioning and coupling
- Adjustable solar panel arrays
- Enclosed battery and electrical equipment compartments
- Up to 50,000-hour LED working life
- Wide -35°C to +60°C operating temperature range
- Designed for demanding mining and industrial environments
- 3-year stated warranty
| Specification | Details |
|---|---|
| Product Name | LumaForce BTL-LTY41-U04 Solar Oilfield LED Light Tower |
| Brand | LumaForce |
| Model | BTL-LTY41-U04 |
| Product Type | Solar Oilfield / Mining Light Tower |
| Installation | Mobile trailer mounted |
| Primary Power Source | Solar |
| Electrical System | 24 V DC |
| Energy Storage | Battery |
| Battery Options | Lead-acid / Lithium |
| Backup Power | Optional generator |
| Solar Panel Configuration | 8 adjustable solar panels |
| Lighting Technology | LED |
| Number of LED Floodlights | 8 |
| Total Luminous Output | Up to 180,000 lm |
| LED Luminous Efficiency | 150 lm/W |
| Approx. Lighting Power | Up to 1,200 W based on rated output and efficiency |
| Colour Temperature | 5000 K Daylight |
| Colour Rendering Index (CRI) | Ra 60 |
| Beam Angle | 60° |
| Emitting Colour | Cold White |
| Dimming Function | Yes |
| Ingress Protection | IP67 |
| LED Working Life | Up to 50,000 hours |
| Mast Type | Telescopic lighting mast |
| Floodlight Configuration | Multi-directional / adjustable |
| Mast Power Cable | Coiled cable |
| Operating Temperature | -35°C to +60°C |
| Trailer Configuration | Tandem axle |
| Number of Axles | 2 |
| Mobility | Towable |
| Tow Coupling | Fitted |
| Jockey Wheel | Fitted |
| Stabilisation | Adjustable stabiliser legs |
| Solar Panel Position | Adjustable / deployable |
| Equipment Housing | Enclosed protective compartments |
| Outdoor Suitability | Heavy-duty outdoor operation |
| Application Type | Large-area worksite illumination |
| Power Generation | Silent solar operation under normal conditions |
| Generator Configuration | Optional backup |
| Typical Applications | Mining, oilfields, drilling, construction and remote industrial sites |
| Warranty | 3 years |
