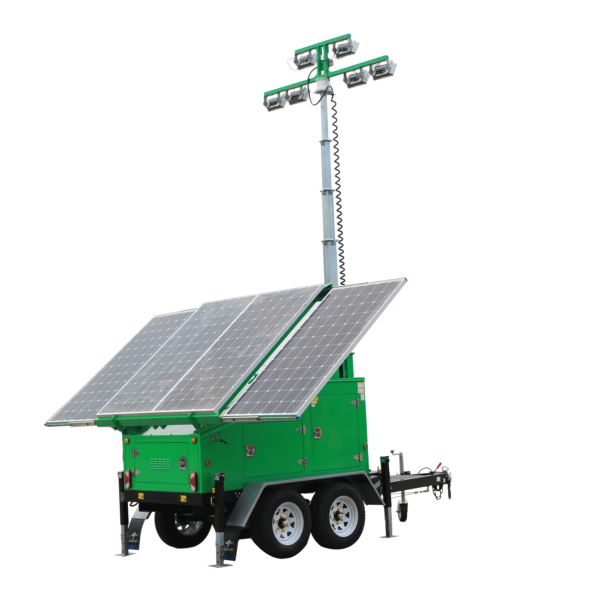

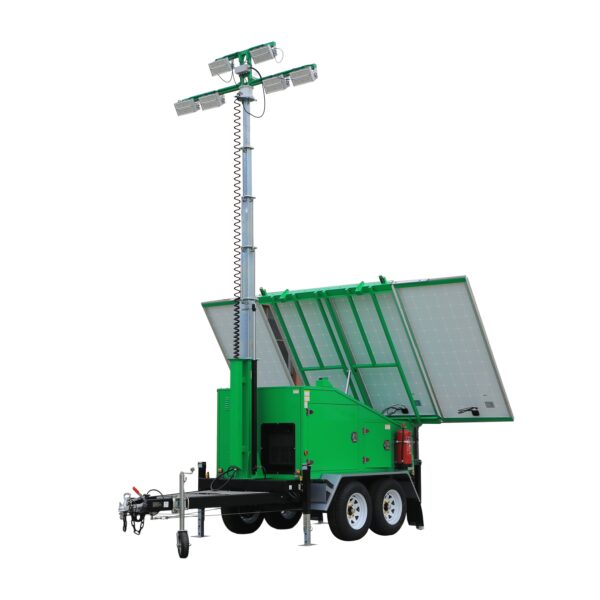

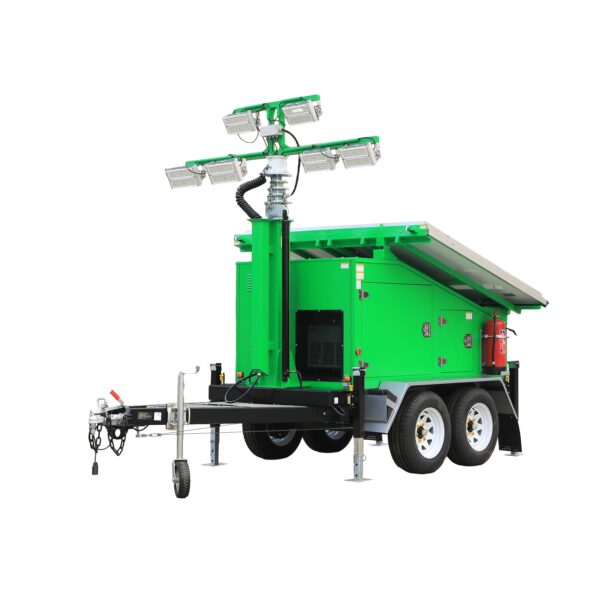

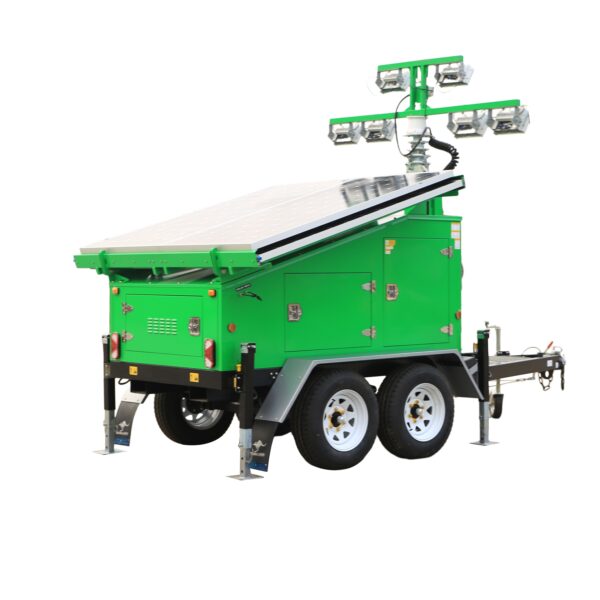

SL-LBT41-R03 Mobile Solar LED Light Tower
The SL-LBT41-R03 Mobile Solar LED Light Tower is a heavy-duty, tandem-axle lighting trailer engineered for construction, mining, roadworks, infrastructure projects and remote industrial sites. Its solar and battery-powered system provides dependable off-grid illumination without the continuous fuel consumption and operating noise associated with conventional diesel light towers.
The unit features four large adjustable solar panels, a telescopic mast and six directional LED floodlights for broad, configurable site coverage. High-efficiency LED technology delivers powerful 5000 K daylight illumination, with lighting configurations from 240 W to 600 W. A robust tandem-axle trailer, four stabiliser legs, jockey wheel and enclosed equipment housing provide secure deployment and convenient site mobility in demanding outdoor environments.
Share this product
Key Features
- Solar and battery-powered mobile lighting system
- Four large adjustable solar panels
- Six directional LED floodlights
- High-efficiency LED lighting technology
- 240 W / 360 W / 400 W / 600 W lighting configurations
- Up to 90,000 lm stated total luminous output
- 5000 K daylight illumination
- Focused 50° beam angle
- Dimming functionality supported
- IP65-rated lighting system
- Telescopic lighting mast
- Heavy-duty tandem-axle trailer
- Four adjustable stabiliser legs
- Integrated jockey wheel for easier positioning
- Tow hitch and safety chains
- Enclosed equipment and battery compartments
- Coiled mast power cable
- Up to 100 km/h stated wind resistance
- Up to 50,000-hour LED working life
- Designed for demanding outdoor and remote-site operation
- 2-year warranty
| Specification | Details |
|---|---|
| Product Name | SL-LBT41-R03 Mobile Solar LED Light Tower |
| Model | SL-LBT41-R03 |
| Product Type | Mobile Solar LED Light Tower |
| Power Source | Solar / Battery |
| Electrical System | 24 V DC |
| Solar Panel Configuration | 4 adjustable panels |
| Light Source | LED |
| Number of LED Floodlights | 6 |
| Lighting Power Options | 240 W / 360 W / 400 W / 600 W |
| Maximum Lighting Configuration | 600 W |
| Total Luminous Output | Up to 90,000 lm |
| LED Efficiency | Up to 150 lm/W |
| Colour Temperature | 5000 K Daylight |
| Colour Rendering Index (CRI) | Ra 80 |
| Beam Angle | 50° |
| Emitting Colour | Cold White |
| Dimming Function | Yes |
| Ingress Protection | IP65 |
| LED Working Life | Up to 50,000 hours |
| Mast Type | Telescopic |
| Mast Cable | Coil cable |
| Lighting Direction | Individually adjustable floodlights |
| Operating Temperature | -20°C to +50°C |
| Wind Resistance | Up to 100 km/h |
| Trailer Configuration | Tandem axle |
| Number of Axles | 2 |
| Mobility | Towable |
| Tow Coupling | Fitted |
| Safety Chains | Fitted |
| Jockey Wheel | Fitted |
| Stabilisation | 4 adjustable stabiliser legs |
| Equipment Housing | Enclosed weather-resistant cabinet |
| Overall Length | 3,950 mm |
| Overall Width | 2,160 mm |
| Overall Height | 2,500 mm |
| Product Weight | Approx. 1,480 kg |
| Application Type | Outdoor mobile area lighting |
| Typical Applications | Mining, construction, roadworks, industrial and infrastructure projects |
| Warranty | 2 years |
