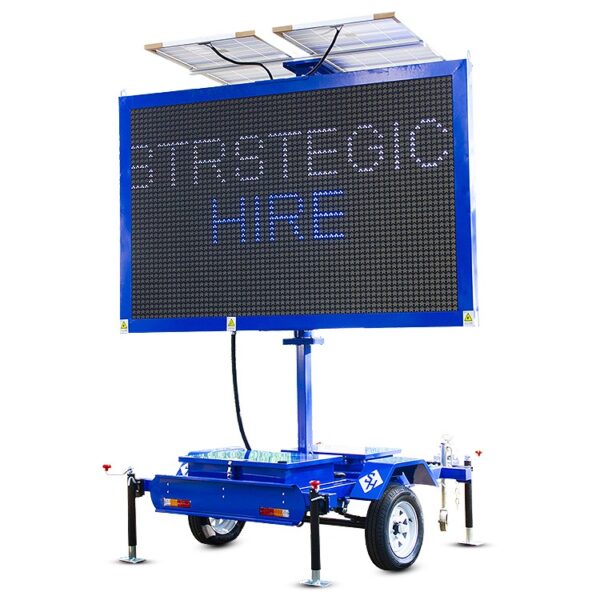

TGH-6000 Solar LED Variable Message Sign (VMS)
SKU:
UW-268327
R41,999.00
The TGH-6000 Solar LED Variable Message Sign is a heavy-duty trailer-mounted traffic information system designed for roadworks, construction zones, highways, traffic diversions, events and temporary traffic management. The high-brightness LED display supports programmable text, warnings and animations, with amber or orange display configurations for excellent roadside visibility.
Powered by 2 × 250 W monocrystalline solar panels and 2 × 250 Ah batteries, the TGH-6000 is designed for extended off-grid operation, with a stated runtime exceeding 120 hours after normal solar charging. The sign provides a visual range exceeding 1,000 metres, 360° screen rotation, electric or hydraulic lifting options and remote programming via Wi-Fi, computer or mobile device.
Share this product
Key Features
- Solar-powered LED Variable Message Sign
- High-visibility amber or orange LED display
- Visual range exceeding 1,000 m
- Programmable text and animation display
- 2 × 250 W monocrystalline solar panels
- 500 W total installed solar capacity
- 2 × 250 Ah lead-acid batteries
- More than 120 hours stated operating time
- High-brightness outdoor LED display
- P35.7 / P42 / P50 pixel pitch options
- 360° rotatable display with position locking
- 1,200 mm display lifting travel
- Electric or hydraulic lifting options
- Wi-Fi, computer and mobile device control
- USB programming support
- Solar and mains battery charging management
- Galvanised steel trailer construction
- Heavy-duty double-spring suspension
- 175/70R13 wheels
- Adjustable trailer jack and guide pulley
- Optional braking configurations
- Road lighting options available
- IP58 stated waterproof configuration
- -20°C to +70°C operating range
- LED lifespan of ≥50,000 hours
- 3-year warranty
| Specification | Details |
|---|---|
| TECHNICAL DATA | — |
| Model | TGH-6000 |
| Product Type | Solar LED Variable Message Sign |
| Configuration | Mobile / Trailer Mounted |
| Primary Power Source | Solar |
| Secondary Charging Source | Mains Power |
| Display Technology | LED |
| Display Colour | Amber / Orange / Custom |
| Display Function | Text / Warnings / Animation |
| Visual Range | >1,000 m |
| Minimum Viewing Distance | Approx. 30 m |
| Stated Operating Time | >120 hours after normal solar charging |
| Operating Temperature | -20°C to +70°C |
| Main Construction | Galvanised Steel |
| Warranty | 3 Years |
| LED DISPLAY SYSTEM | — |
| Display Size | Approx. 1,200 × 1,600 mm / Customisable |
| LED Colour | Amber / Orange / Custom |
| Pixel Pitch Options | P35.7 / P42 / P50 / Custom |
| Display Brightness | High-Brightness Outdoor Configuration |
| Display Input Voltage | 12 V DC |
| Maximum Current | 0.5 A |
| Module Maximum Power | Stated 6 W/m² |
| Mean Time Between Failures | ≥10,000 hours |
| LED Lifespan | ≥50,000 hours |
| Waterproof Configuration | Up to IP58 |
| Reflective Film | Non-Reflective / Optional |
| Text Display | Supported |
| Warning Messages | Supported |
| Animation Display | Supported |
| Remote Message Changes | Supported |
| SOLAR POWER SYSTEM | — |
| Solar Panel Type | Monocrystalline Silicon |
| Number of Solar Panels | 2 |
| Solar Panel Voltage | 18 V |
| Solar Panel Power | 250 W Each |
| Total Solar Capacity | 500 W |
| Solar Panel Configuration | 18 V / 250 W × 2 |
| Solar Charge Controller | 60–100 A |
| Solar Charging | Automatic |
| Mains Charging Management | Supported |
| Off-Grid Operation | Supported |
| BATTERY SYSTEM | — |
| Battery Type | Valve-Regulated Lead-Acid |
| Number of Batteries | 2 |
| Battery Voltage | 12 V Each |
| Battery Capacity | 250 Ah Each |
| Battery Configuration | 12 V / 250 Ah × 2 |
| Total Installed Battery Capacity | 500 Ah |
| Stated Operating Duration | >120 Hours |
| Charging Sources | Solar / Mains |
| MAST / LIFTING SYSTEM | — |
| Display Lifting System | Electric / Hydraulic Options |
| Maximum Lifting Travel | Approx. 1,200 mm |
| Screen Rotation | 360° |
| Position Locking | Any-Point Lock Function |
| Display Orientation | Adjustable |
| Operating Position | Raised |
| Travel Position | Lowered |
| CHASSIS | — |
| Chassis Type | Heavy-Duty Traffic Trailer |
| Main Frame Material | Galvanised Steel |
| Structural Material | Square Steel Tube / Channel Steel |
| Main Tube Specification | Approx. 80 × 80 × 40 mm |
| Suspension | Double-Spring Shock-Absorbing System |
| Spring Specification | 750 × 50 × 5P |
| Wheel / Tyre | 175/70R13 |
| Stated Wheel Bearing Capacity | Approx. 675 kg |
| Trailer Load Configuration | Up to 1.5 t stated |
| Guide Pulley | Adjustable |
| Guide Pulley Adjustment | ±300 mm |
| Guide Pulley Capacity | Approx. 907 kg |
| Trailer Jack | 360° Rotating |
| Jack Retracted Height | Approx. 550 mm |
| Jack Extended Height | Approx. 850 mm |
| Drawbar Length | Approx. 1,200 mm / Customisable |
| Trailer Speed Limit | 70 km/h |
| TRAILER & ROAD SYSTEM | — |
| Trailer Dimensions | Approx. 3,500 × 2,050 × 2,700 mm* |
| Braking Options | Non-Braked / Braked / Automatic Brake |
| Fender Configuration | Wheel-Matched Protective Fenders |
| Rear Road Lights | Optional / Customisable |
| Turn Indicators | Available |
| Brake Lights | Available |
| Width / Position Lights | Available |
| Reflective Sheeting | Customisable |
| Mobility | Towable |
| CANOPY / EQUIPMENT HOUSING | — |
| Battery Housing | Integrated |
| Control Equipment Housing | Integrated |
| Solar Charge Equipment | Protected Installation |
| Outdoor Configuration | Yes |
| Trailer Construction | Galvanised Steel |
| Equipment Protection | Weather-Resistant Outdoor Configuration |
| CONTROL PANEL | — |
| Software Control | Supported |
| Wi-Fi Control | Supported |
| Computer Control | Supported |
| Mobile Phone Control | Supported |
| USB Programming | Supported |
| Remote Message Programming | Supported |
| Animation Programming | Supported |
| Solar Charge Management | Integrated |
| Mains Charge Management | Integrated |
| OPERATING DATA | — |
| Visual Range | >1,000 m |
| Minimum Viewing Distance | Approx. 30 m |
| Operating Temperature | -20°C to +70°C |
| Continuous Outdoor Operation | Supported |
| LED Rated Lifespan | ≥50,000 Hours |
| Waterproof Protection | Up to IP58 |
| APPLICATIONS | — |
| Highway Roadworks | Suitable |
| Urban Roadworks | Suitable |
| Construction Zones | Suitable |
| Lane Closures | Suitable |
| Traffic Diversions | Suitable |
| Temporary Traffic Management | Suitable |
| Road Maintenance | Suitable |
| Infrastructure Projects | Suitable |
| Events & Functions | Suitable |
| Business Site Traffic Control | Suitable |
| Emergency Road Warnings | Suitable |
Recommended Applications
The TGH-6000 Solar LED Variable Message Sign is suitable for highway maintenance, municipal roadworks, construction zones, lane closures, traffic diversions, infrastructure projects, event traffic management, temporary road closures and emergency traffic warnings.
Its combination of >1,000 m visual range, 500 W solar array, 500 Ah installed battery capacity, 360° display rotation and remote programming provides a practical solution for extended roadside deployment without continuous access to mains electricity.
